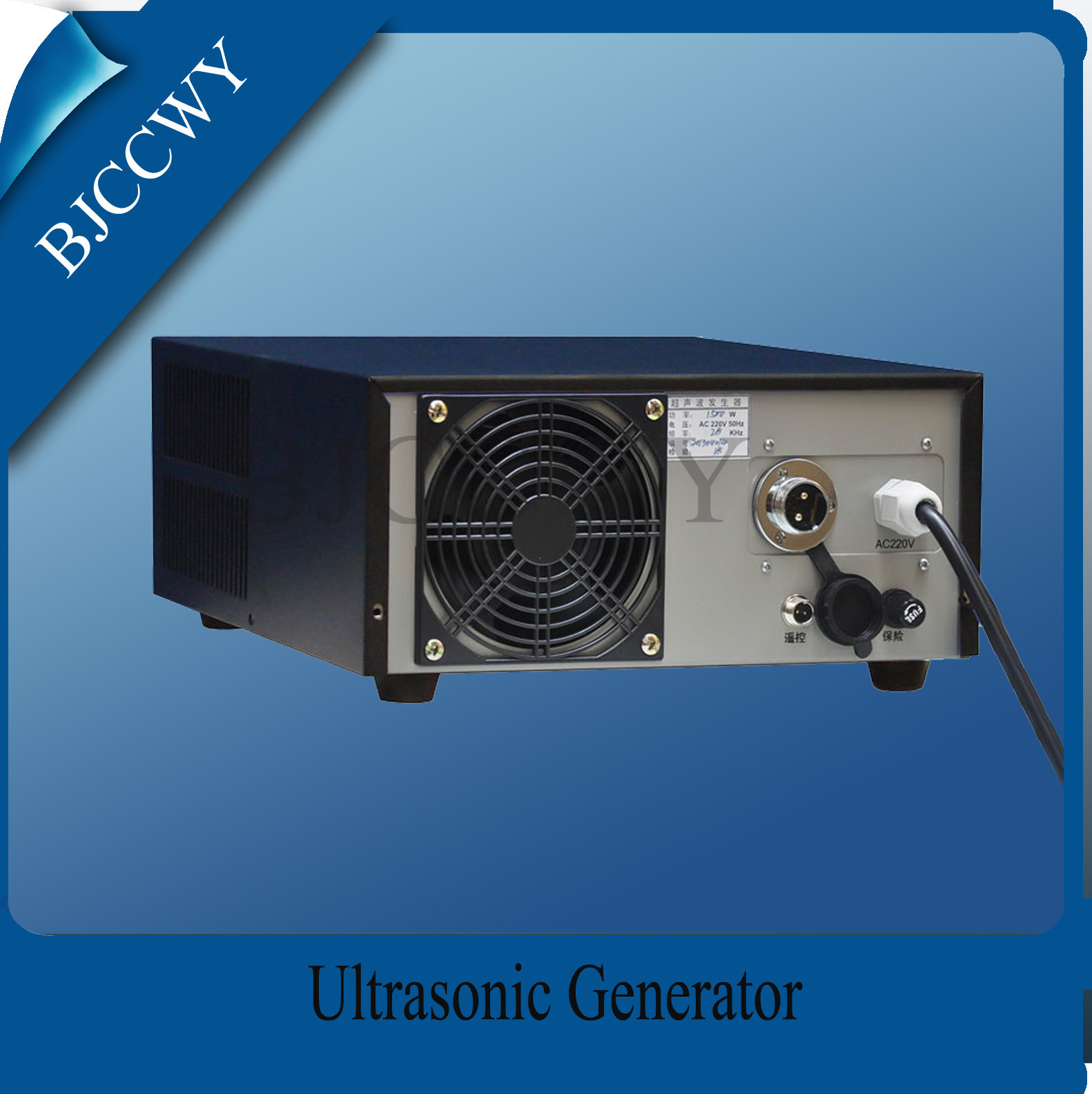

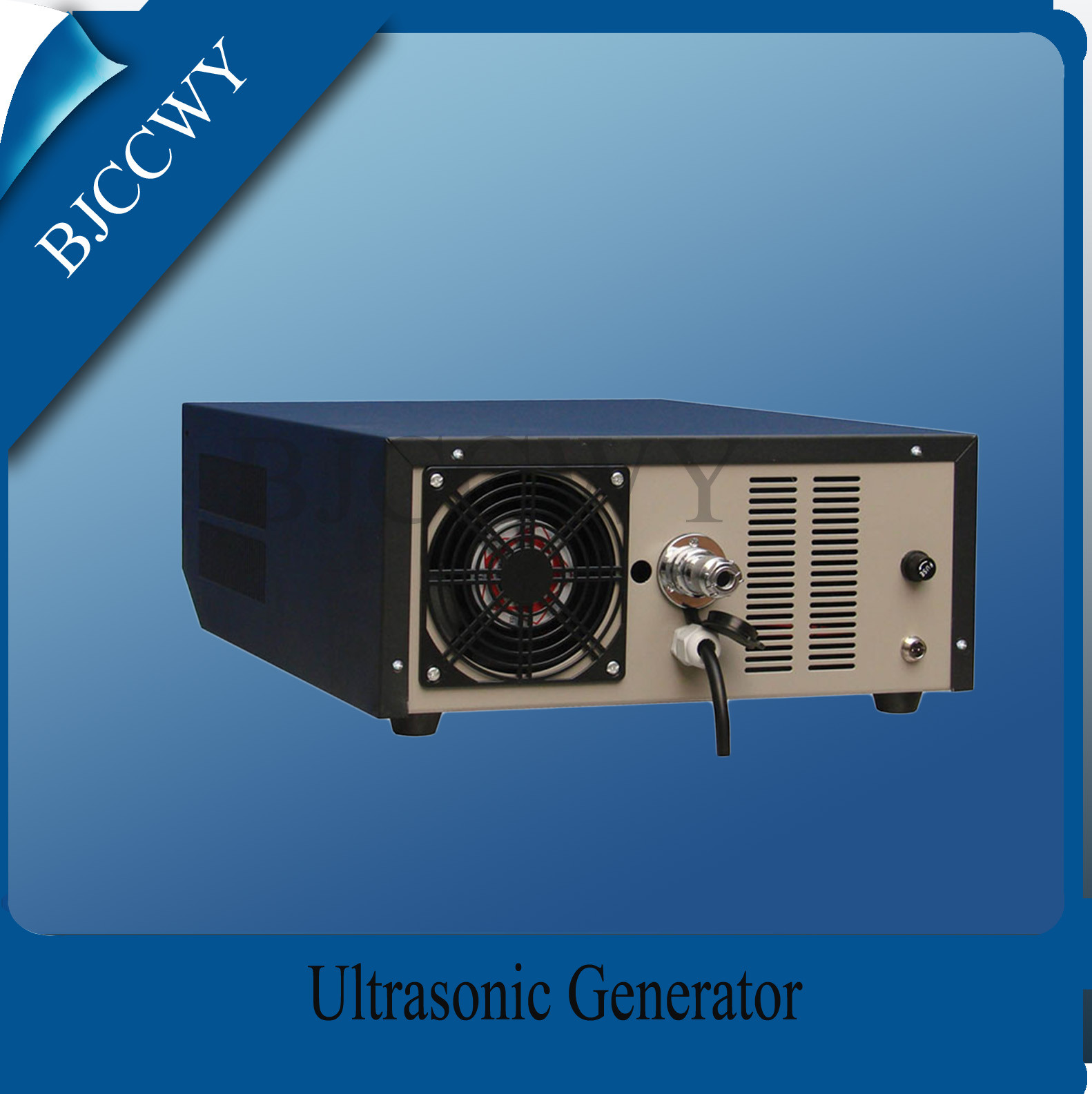

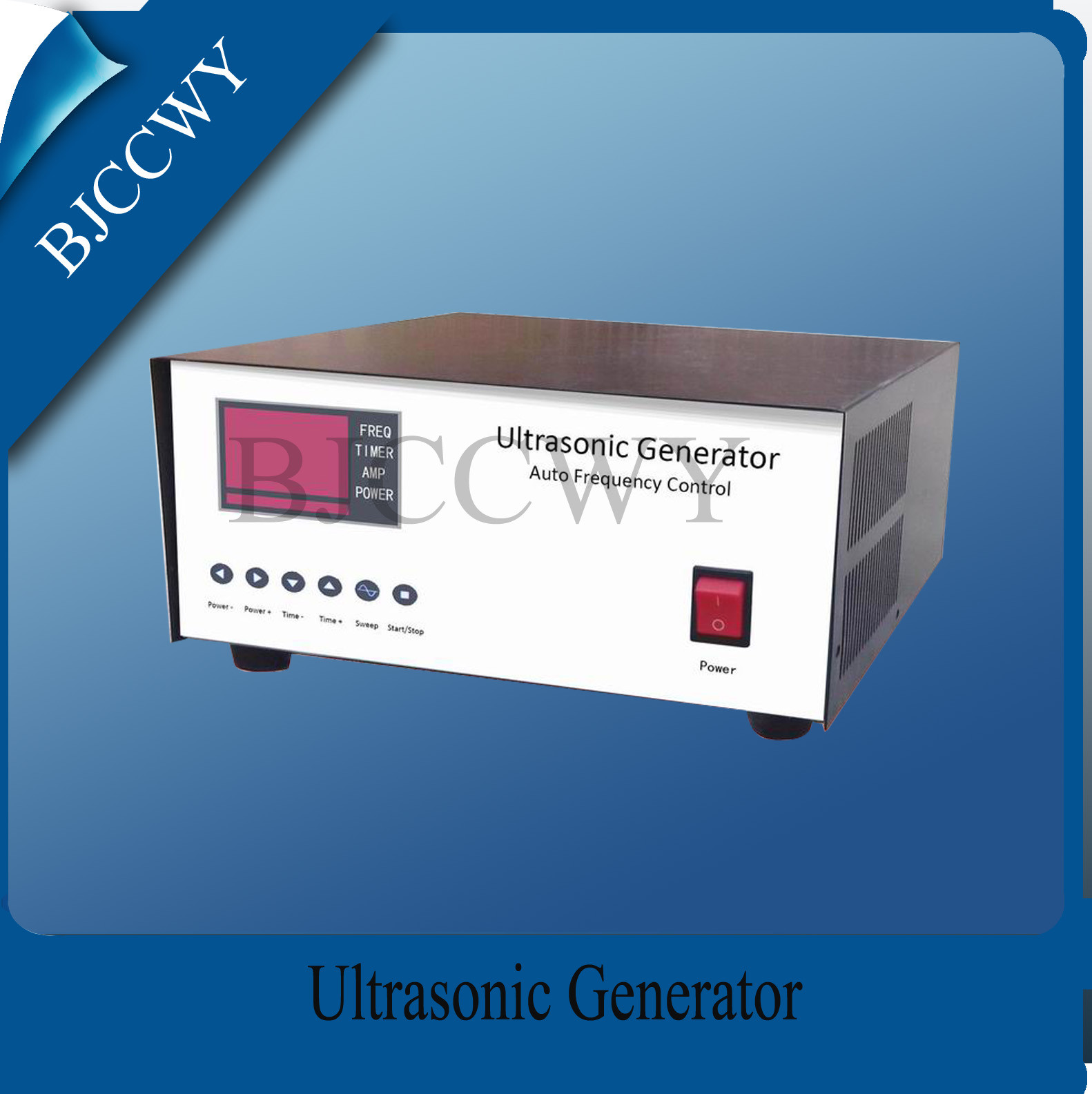

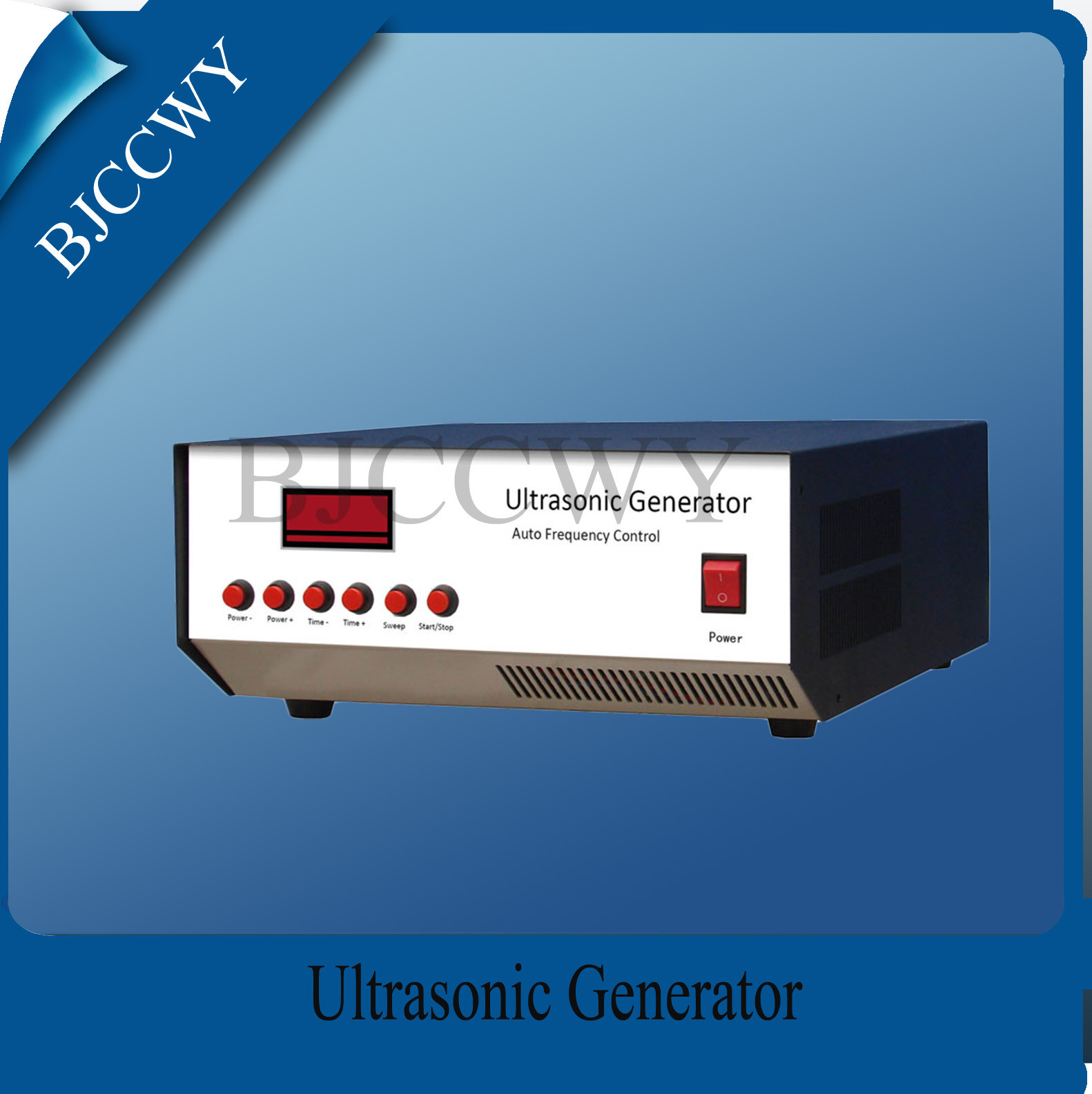

300W 45Khz Digital Ultrasonic Generator For Automatic Ultrasonic Cleaner
Power of 300w long - life ultrasonic generator for ultrasonic cleaner and welding equipment
Quick Detail
300w ultrasonic generator for ultrasonic cleaner :
In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.
300W 45Khz Digital Ultrasonic Generator For Automatic Ultrasonic Cleaner
Description of 300w ultrasonic generator for ultrasonic cleaner:
The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer, automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With a computer fault location and display system, its operation and maintenance are more convenient.
Type |
X4-A-I |
X4-A -II |
X4-A-III |
X4-A-IV |
X4-M-V |
Driven power |
600W-900W |
900W-1500W |
1500W-2100W |
2100W-2700W |
3000W |
Power Control (Adjustable) |
0-100% |
0-100% |
0-100% |
0-100% |
0-100% |
Working Frequency |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
25KHZ-40KHZ |
Working voltage |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
AC220V 10% 50HZ |
Max.numbers of transducers |
12-18pcs 60W |
12-30pcs 60W |
12-42pcs 60W |
12-54pcs 60W |
12-60pcs 60W |
Rated Current per transducer |
0.1-0.17A |
0.1-0.17A |
0.1-0.17A |
0.1-0.14A |
0.1-0.14A |
Output Current range |
1-3A |
1-4.5A |
1-6A |
1-7A |
1-7.5A |
Time Control Range |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
0-59’59” |
Environment temperature |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
0-40℃ |
Relative Humidity |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
40%-90% |
Net weight |
10KG |
11KG |
12KG |
12KG |
12KG |
Dimension (mm) |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
390×350×130 |
Competitive Advantage of 300w ultrasonic generator for ultrasonic cleaner:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into
a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning
into an easy task. This product has been widely used in distillation, mix and mill for various
chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
