Screen Ultrasonic Vibration Transducer And Generator Equipment
Quick Detail:
Ultrasonic vibration transducer separates materials into finer detail, more uniform and more efficient, which is especially suitable for fine-screening materials.
Stainless steel ultrasonic transducer for ultrasonic vibration system
Description:
Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).
Feature
1. Higher quality piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
2. High efficiency : high quality machine, high electro-acoustic conversion efficiency at the resonant frequencies;
4. High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
5. Heat-resistance: small resonant impedance, low heat, wide temperature range.
Application:
Strong cavitations,powerful and effective, quick detergence.
Automotive and aerospace industry,mechanical industry,plating industry etc.
Specifications:
Type |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
CCH-33100 |
33 |
20-40 |
5000 |
100 |

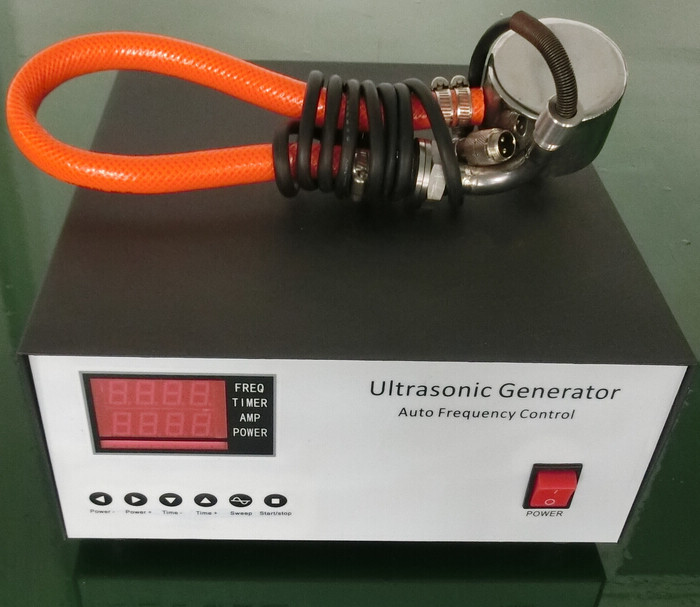

Frequency: 33KHZ
Generator: 300W
Transducer: 100W
Competitive Advantage:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
