Vibration Piezo Ultrasonic Transducer , Ultrasonic Cleaning Transducer
Quick Detail:
Ultrasonic vibration transducer separates materials into finer detail, more uniform and more efficient, which is especially suitable for fine-screening materials.
Industrial Ultrasonic Vibration Transducer , Piezo Ceramic Transducer
Main Features:
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance , ensuring high conversion efficiency.
Description:
Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).
The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.
Specifications:
| NO. | Type | Length (mm) |
Weigh (g) |
Frequency (KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
| 1 | CCH-6845D-20LA PZT-8 | 95 | 910 | 20 | 20-40 | 5000 | 100 |
| 2 | CCH-6850D-28LB PZT-4 | 67 | 666 | 28 | 10--25 | 7000 | 120 |
| 3 | CCH-6845D-28LA PZT-8 | 66 | 625 | 28 | 10--25 | 5000 | 100 |
| 4 | CCH-6845D-28LB PZT-4 | 66 | 624 | 28 | 10--25 | 6600 | 100 |
| 5 | CCH-5838D-25LB PZT-4 | 76 | 524 | 25 | 10--25 | 5400 | 60 |
| 6 | CCH-5938D-25LA PZT-8 | 65 | 525 | 25 | 10--25 | 3800 | 60 |
| 7 | CCH-5938D-28LB PZF-4 | 66 | 510 | 28 | 10--25 | 3800 | 60 |
| 8 | CCH-4535D-28ZB PZT-4 |
82 | 425 | 28 | 10--25 | 4100 | 50 |
| 9 | CCH-6845D-30L PZT-8 |
61 | 550 | 30 | 10--25 | 5000 | 100 |
| 10 | CCH-4838D-33LA PZT-8 | 58 | 420 | 33 | 10--25 | 3800 | 60 |
| 11 | CCH-5038D-40LA PZT-8 | 54 | 300 | 40 | 10--25 | 3800 | 60 |
| 12 | CCH-4535D-40LB PZT-4 | 57 | 300 | 40 | 10--25 | 4100 | 50 |
| 13 | CCH-4838D-40ZB PZT-8 |
56 | 310 | 40 | 10--25 | 3800 | 60 |
| 14 | CCH-4838S-50LA PZT-4 | 40 | 160 | 50 | 30-60 | 2100 | 30 |
| 15 | CCH-3830D-54LA PZT-4 | 36 | 135 | 54 | 10--25 | 3200 | 35 |
| 16 | CCH-4938D-68ZB PZT-8 | 79 | 535 | 68 | 15-30 | 3800 | 60 |
| 17 | CCH-5250D-68ZB PZT-4 | 67 | 588 | 68 | 15-30 | 7000 | 120 |
| 18 | CCH-4038D-80ZB PZT-4 | 53 | 290 | 80 | 15-30 | 5400 | 60 |
| 19 | CCH-4838D-120ZB PZT-4 | 57 | 255 | 120 | 15-30 | 5400 | 60 |
| 20 | CCH-4535D-135ZB PZT-4 | 28 | 215 | 135 | 15-30 | 4200 | 50 |
| 21 | CCH-5038D-25(40)LB PZT-8 | 65 | 442 | 25 and 40 | 15-30 | 3800 | 60 |
| 22 | CCH-3830D-200LA PZT-4 | 42 | 135 | 200 | 15-30 | 3200 | 30 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001

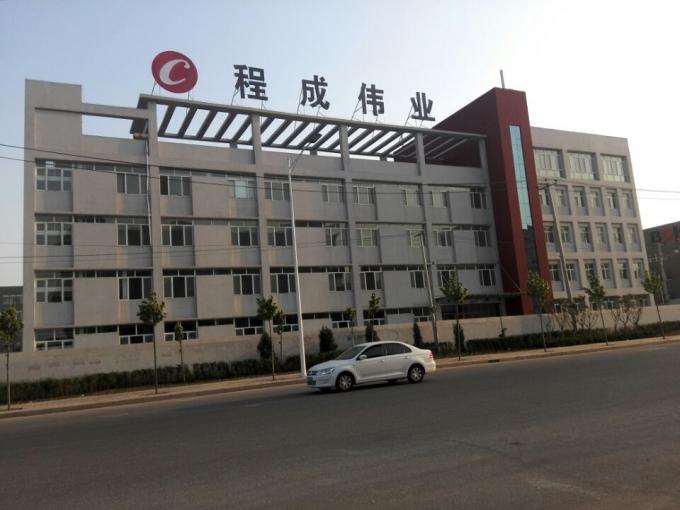

Company pictures:
