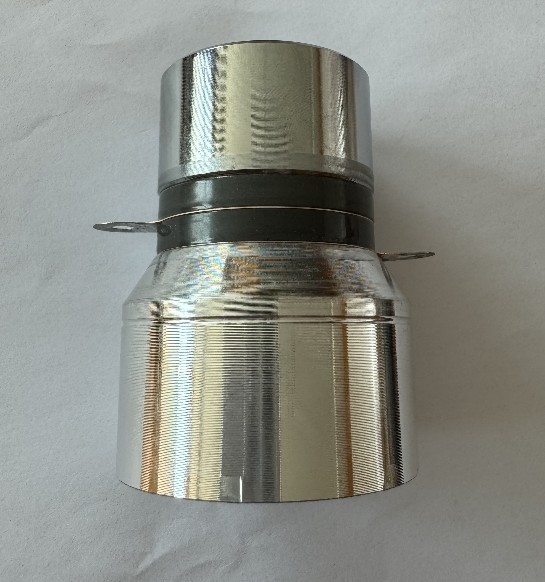

Cleaning Piezoelectric Ultrasonic Transducer Sensor
Description:
Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).
The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.
Specifications:
Type | length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | input Power(W) |
CCH-7070F-15Z P8 | 153 | M20×1.5 | 15 | 15 | 13000 | 2500 |
CCH-6060F-15Z P8 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
CCH-5050F-15Z P4 | 171 | M18×1.5 | 15 | 12 | 12500 | 1500 |
CCH-6060F-20Z P4 | 118 | M20×1.5 | 20 | 15 | 15000 | 1800 |
CCH-5555F-20Z P8 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
CCH-5050F-20Z P8 | 124 | M18×1.5 | 20 | 12 | 10000 | 1500 |
CC-4040F-20ZL P8 | 112 | 1/2-20 UNF | 20 | 15 | 9000 | 700 |
CCH-4040F-20ZL-P P8 | 133 | 1/2-20 UNF | 20 | 15 | 10000 | 900 |
CCH-5050D-20D-P P8 | 121 | M18×1.5 | 20 | 15 | 6000 | 600 |
CCH-3030F-30Z P8 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
CCH-3030D-28Z P4 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
CCH-2525D-28Z P8 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
CCH-3838D-28ZL P8 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
CCH-3850L-20D P8 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
CCH-3840L-20D P8 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
CCH-3850F-20D P8 | 128 | 1/2-20 UNF | 20 | 10 | 12500 | 1300 |
CCH-3850F-20DL P8 | 132 | 1/2-20 UNF | 20 | 10 | 11000 | 1500 |
CCH-3840F-20D P8 | 123 | 1/2-20 UNF | 20 | 10 | 9500 | 900 |
CCH-5060F-15D P4 | 171 | M18×1.5 | 15 | 12 | 10000 | 2000 |
CCH-2525D-35ZL P8 | 71 | M8×1 | 35 | 25 | 2200 | 100 |
CCH2020D-38ZL P8 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
CCH-2830D-38DL P4 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001
