High Power Ultrasonic Transducer 28KHZ 100W Ultrasonic Humidifier Transducer

1PCS
MOQ
$50--$120
Price
High Power Ultrasonic Transducer 28KHZ 100W Ultrasonic Humidifier Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

underwater ultrasonic transducer

,

immersible ultrasonic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

 High efficiency electricity and sound transfer 28KHZ 100W Ultrasonic Transducer used in diferent machine machine



Quick Detail 28KHZ100W  Ultrasonic Transducer:



High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.

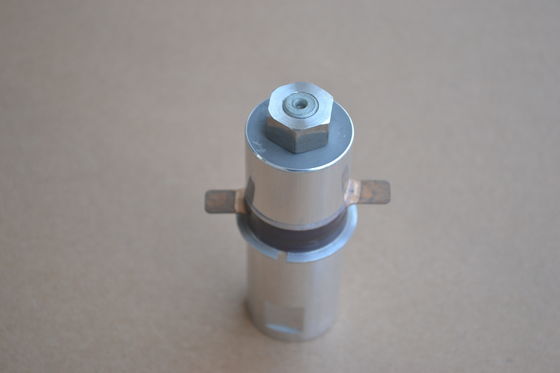

High Power Ultrasonic Transducer 28KHZ 100W Ultrasonic Humidifier Transducer





Description of 28KHZ100W  Ultrasonic Transducer:



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications of 28KHZ100W Ultrasonic Transducer:



widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.





Specifications of 28KHZ100W Ultrasonic Transducer:



Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)



Resonance Impedance(Ω)



Capacity(pF)



Input Power

(W)

CCH-2525D-28Z P8



91



M8×1



28



25



2200



100





Competitive Advantage of 28KHZ100W Ultrasonic Transducer:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
