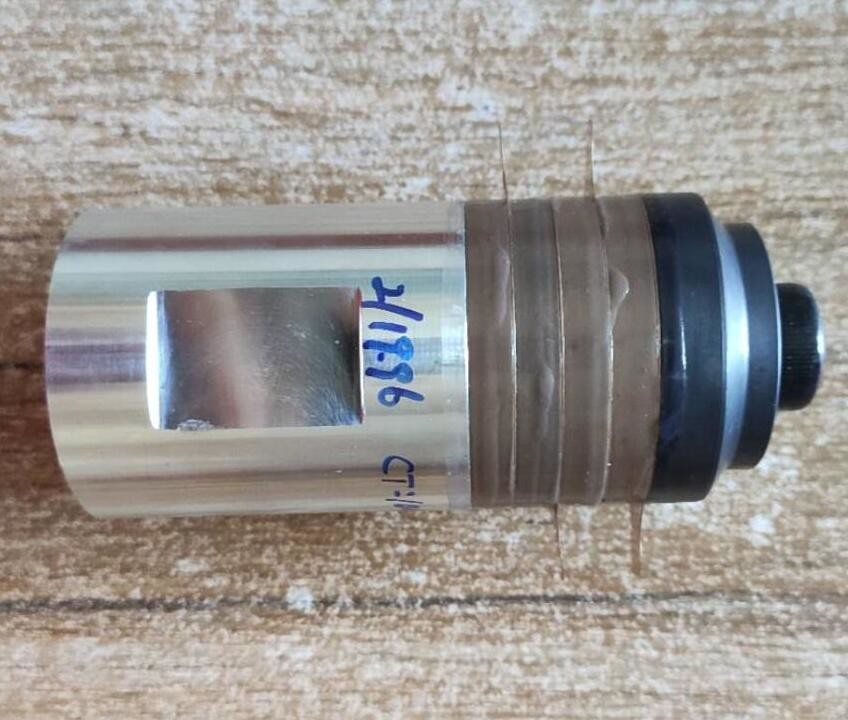

2000w 20k Ultrasonic Welding Transducer
FS(hz): 19841.6
F1(HZ): 19837.6
F2-F1(HZ):7.2
QM: 2746.39
CT(NF): 11.06825
R1(ohm):9.11
Keff: 0.14
Type | length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | input Power(W) |
CCH-7070F-15Z P8 | 153 | M20×1.5 | 15 | 15 | 13000 | 2500 |
CCH-6060F-15Z P8 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
CCH-5050F-15Z P4 | 171 | M18×1.5 | 15 | 12 | 12500 | 1500 |
CCH-6060F-20Z P4 | 118 | M20×1.5 | 20 | 15 | 15000 | 1800 |
CCH-5555F-20Z P8 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
CCH-5050F-20Z P8 | 124 | M18×1.5 | 20 | 12 | 10000 | 2000 |
CC-4040F-20ZL P8 | 112 | 1/2-20 UNF | 20 | 15 | 9000 | 700 |
CCH-4040F-20ZL-P P8 | 133 | 1/2-20 UNF | 20 | 15 | 10000 | 900 |
CCH-5050D-20D-P P8 | 121 | M18×1.5 | 20 | 15 | 6000 | 600 |
CCH-3030F-30Z P8 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
CCH-3030D-28Z P4 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
CCH-2525D-28Z P8 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
CCH-3838D-28ZL P8 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
CCH-3850L-20D P8 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
CCH-3840L-20D P8 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
CCH-3850F-20D P8 | 128 | 1/2-20 UNF | 20 | 10 | 12500 | 1300 |
CCH-3850F-20DL P8 | 132 | 1/2-20 UNF | 20 | 10 | 11000 | 1500 |
CCH-3840F-20D P8 | 123 | 1/2-20 UNF | 20 | 10 | 9500 | 900 |
CCH-5060F-15D P4 | 171 | M18×1.5 | 15 | 12 | 10000 | 2000 |
CCH-2525D-35ZL P8 | 71 | M8×1 | 35 | 25 | 2200 | 100 |
CCH2020D-38ZL P8 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
CCH-2830D-38DL P4 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
Beijing Cheng -Cheng Weiye Science and Technology Co., Ltd established in 1999. we are a professional manufacturer in ultrasonic transducers, ultrasonic generator and piezoelectric ceramics.
The ultrasonic transducers include ultrasonic cleaning transducer, welding, drilling and polishing transducer, Ultrasonic smashing cell transducer, IC Banding Transducer, Ultrasonic collar cleaning transducer, Ultrasonic vibration transducer, ultrasonic transducer for beauty, ultrasonic atomizing transducer, ultrasonic distance sensor, tubular transducer equipment, ultrasonic cleaning generator, ultrasonic cell disruptor etc.
