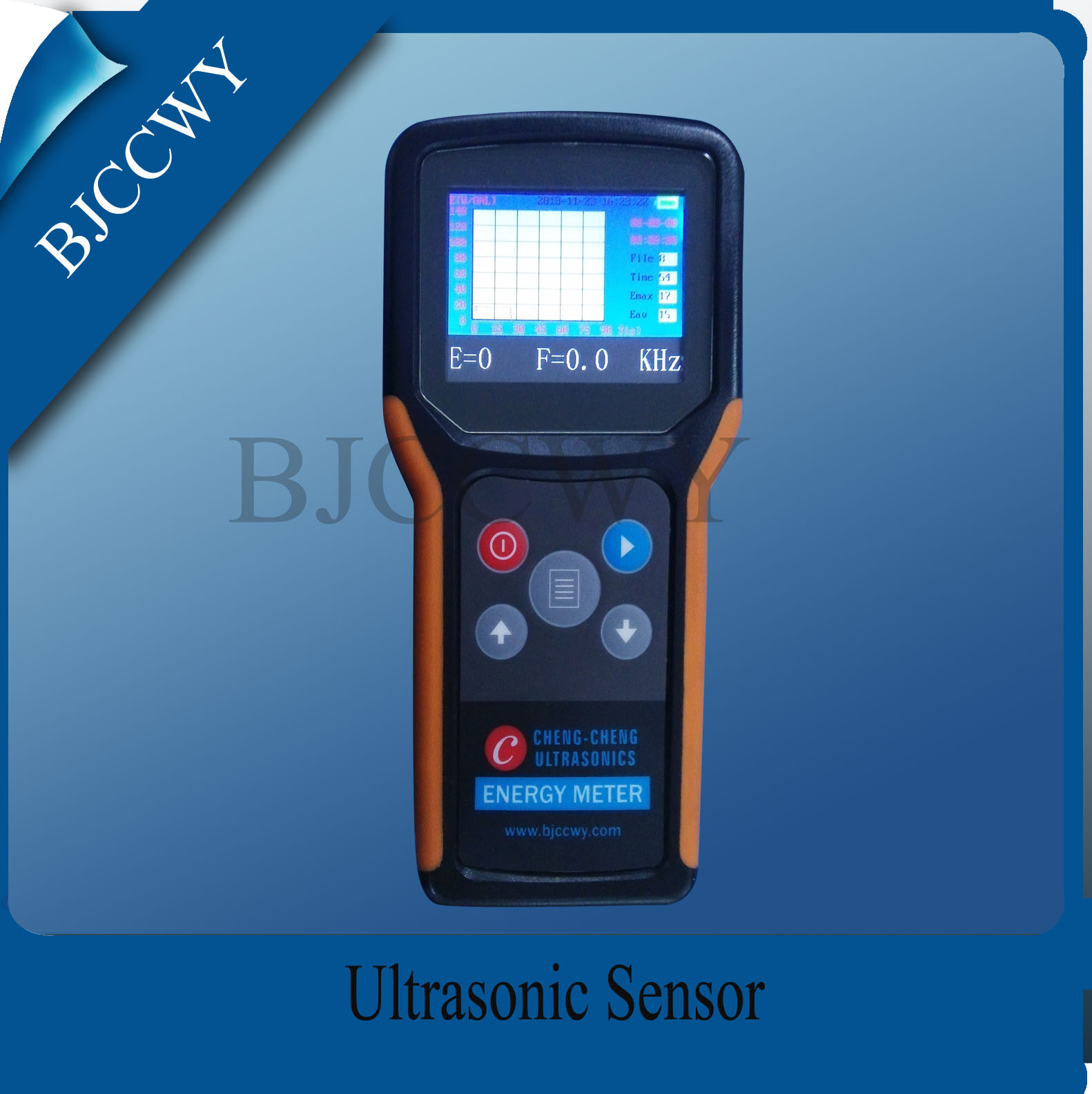

Ultrasonic Power Measuring Instrument of Sound pressure meter
Measure the ultrasonic power,frequency of ultrasonic system.
Type:DBS-200S (Frequency display, data upload interface, computer data analysis software)
Measurement Range:0 - 255 w/in2
Measurment Frquency:10 kHz – 200 kHz
Date display:Color screen display, time and energy curve, the maximum, minimum, average, record file number.
Date Storage:Time, instantaneous energy, continuous recording 24 hours, 180 k data (0.5 seconds per point)
Power supply:3.7 V li-ion rechargeable battery
Material of sensor: Stainless Steel
Temperature of Liquid: 0℃- 150℃ ;
Diamater of sensor: 10 mm;
Length of sensor: 1.0m;0.5 +0.5m cable
Type |
DBS-200S |
DBS-1000 |
Measuring Range |
0 -255 w/in2 |
0 - 255 w/in2 |
Measuring Frequency |
10 kHz – 200 kHz |
10 kHz – 1MHz |
Data Display |
Color display, time and energy curve, maximum value, minimum value, average value, record file number, ultrasonic frequency |
Color display, time and energy curve, maximum value, minimum value, average value, record file number, ultrasonic frequency |
Data storage |
Time, frequency, instantaneous energy, continuous recording 48 hours,360K point data(0.5”/point) |
Time, frequency, instantaneous energy, continuous recording 48 hours,360K point data(0.5”/point) |
Electric Source |
3.7V Lithium rechargeable battery |
3.7V Lithium rechargeable battery |
Detector Material |
Stainless steel sealing pipe |
Stainless steel sealing pipe |
Fluid Temperature |
0℃-150℃ |
0℃-150℃ |
Detector Diameter |
25mm |
25 mm |
Detector Length |
1.0 m;0.5mStainless steel Detector+0.5m cable |
1.0 m;0.5mStainless steel Detector+0.5m cable |
Frequency showing |
Yes |
Yes |
Data upload |
Yes |
Yes |
Computer analysis software |
Yes(additional cost) |
Yes(additional cost) |
