120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer

120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer

Large Image :  120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description

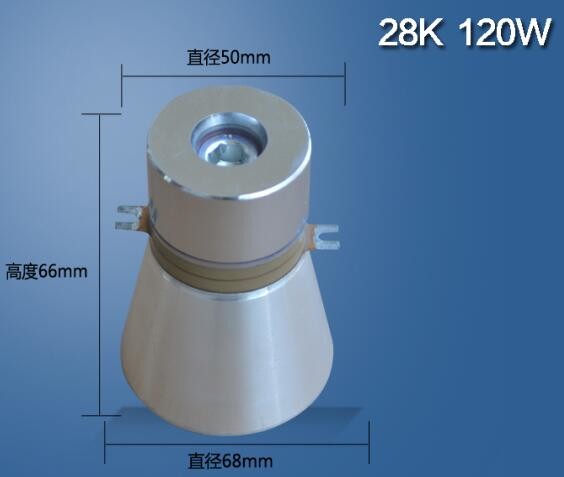

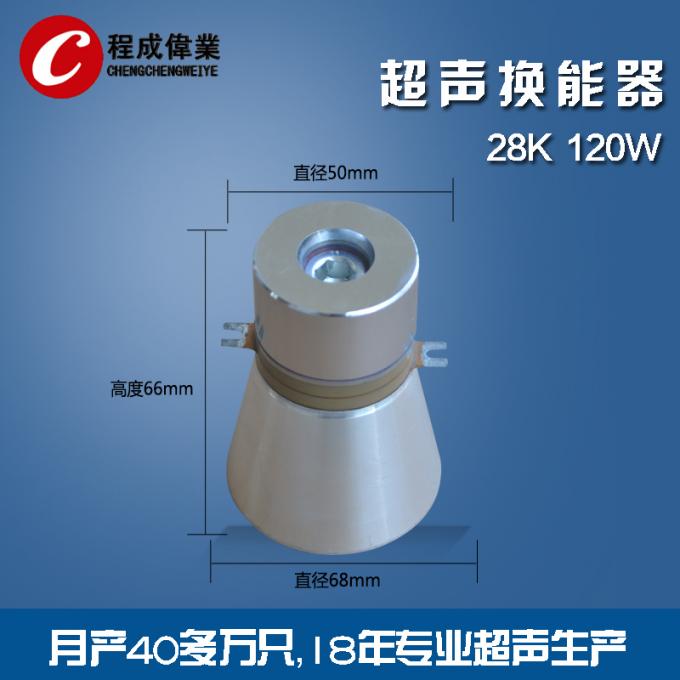

Item: CCH-6850D-28LB Pzt-4 Length(mm): 66
Weight(g): 720 Frequency(KHZ): 28
Resonance Impedance: 10-20 Ω Input Power(w): 120

120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer



Quick Detail



28khz 120w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.









Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer



120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer



Specifications



28khz120w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6850D-28LB

PZT-4

66

720

28

10-20

7800

120



Competitive Advantage



28khz120w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

120w High Input Power ultrasound transducer cleaner , piezoelectric ultrasonic transducer
