Home Products Ultrasonic Cleaning Transducer

Ultrasonic Cleaning Transducer For Jewelry

Ultrasonic Cleaning Transducer For Jewelry

Ultrasonic Cleaning Transducer For Jewelry supplier
cheap Ultrasonic Cleaning Transducer For Jewelry cheap Ultrasonic Cleaning Transducer For Jewelry cheap Ultrasonic Cleaning Transducer For Jewelry cheap Ultrasonic Cleaning Transducer For Jewelry

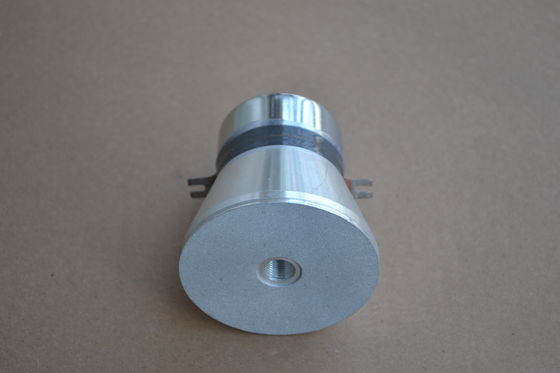

Large Image : Ultrasonic Cleaning Transducer For Jewelry

Product Details:

Place of Origin:CN
Brand Name:CCWY
Certification:CE ROSH TUV
Model Number:CCWY

Payment & Shipping Terms:

Minimum Order Quantity:1PCS
Price:$6--$15
Packaging Details:CARTON
Delivery Time:On stock
Payment Terms:T/T
Supply Ability:20.000.000 PER MONTH
Detailed Product Description

piezo ultrasonic transducer and 25khz60w ultrasonic cleaning transducer for ultrasonic cleaner machine pzt4 material





Quick Detail



25khz 60w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Ultrasonic Element 25khz 60w Ultrasonic Cleaning Transducer , Piezo ultrasonic transducers





Description



25khz60w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



Ultrasonic Cleaning Transducer For Jewelry



Ultrasonic Cleaning Transducer For Jewelry



Specifications



25khz60w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-5838D-25LB

PZT-4

76

524

25

10-25

5400

60





Competitive Advantage



25khz60w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
