Waterproof Ultrasonic Cleaning Transducer High Amplitude 100w 28KHz
Quick Detail

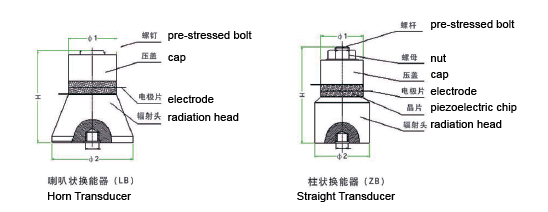

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Naming methods as following:
CCH-6845D-28LA
CCH: Cheng cheng weiye
68: Diameter of radiating face (mm)
45: Diameter of piezoceramics(mm)
D: double piezoceramics
28:Resonance frequency
L: Horn
A: No-screw hole
Specifications
100W 28KHz Ultrasonic cleaning transducer for Ultrasonic cleaning machine
Type |
Length
(mm) |
Weigh
(g) |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
CCH-6845D-28LA PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
