Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device

Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device
Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device

Large Image :  Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device Get Best Price

Product Details:
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $3000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
High Light:

piezo ultrasonic transducer

,

industrial ultrasonic transducer



Ultrasonic Equipment 0 - 255 w/in2 Ultrasonic Measuring Device

 Ultrasonic Power Measuring Instrument



Measure the ultrasonic power,frequency of ultrasonic system.

Type:DBS-200 (No frequency display, no data upload interface)

Measurement Range:0 - 255 w/in2

Measurment Frquency:10 kHz – 200 kHz

Date display:Color screen display, time and energy curve, the maximum, minimum, average, record file number.

Date Storage:Time, instantaneous energy, continuous recording 24 hours, 180 k data (0.5 seconds per point)

Power supply:3.7 V li-ion rechargeable battery

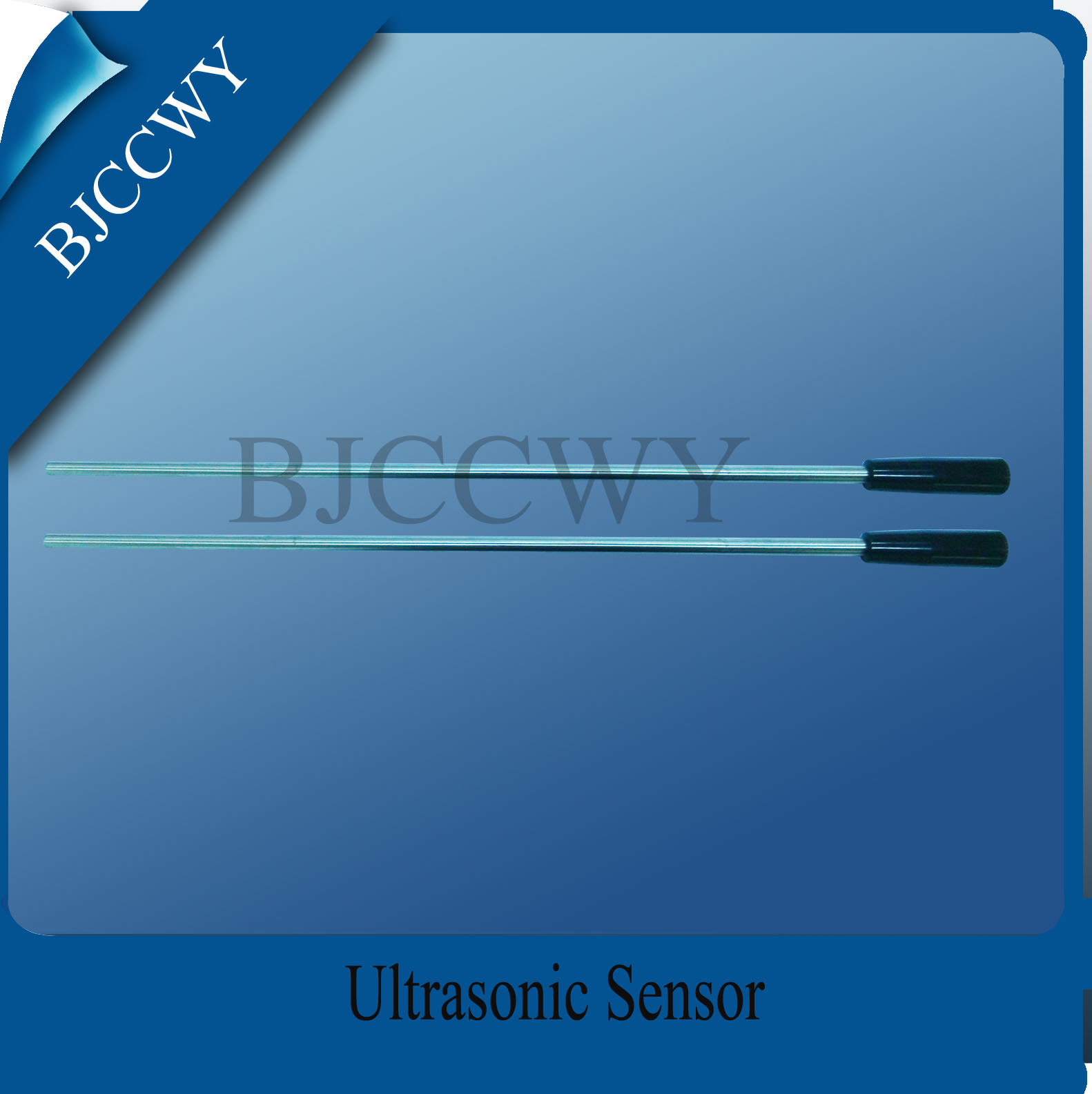

Material of sensor: Stainless Steel

Temperature of Liquid: 0℃- 150℃ ;

Diamater of sensor:  10 mm;

Length of sensor: 1.0m;0.5 +0.5m cable
