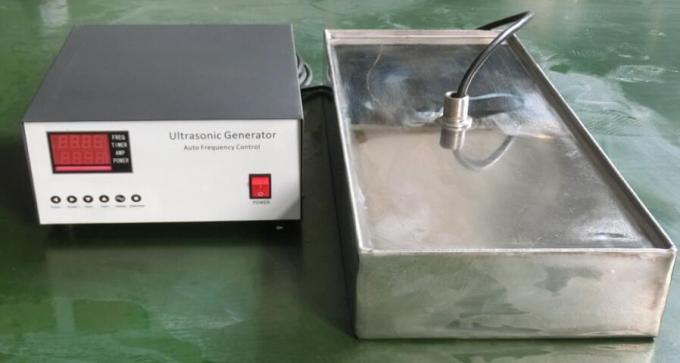

Metal Box 40KHZ 2000W Immersible Ultrasonic Transducer For Tank Cleaning

Metal Box 40KHZ 2000W Immersible Ultrasonic Transducer For Tank Cleaning

Large Image :  Metal Box 40KHZ 2000W Immersible Ultrasonic Transducer For Tank Cleaning

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $2000-3000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Material: Stainless Steel Power: 2000W
Frequency: 20-40KHZ Platform Dimension: 650x450x100mm
Certification: CE, ISO9001 Customized: Yes
High Light:

2000W immersible ultrasonic transducer


40KHZ immersible ultrasonic transducer


immersible ultrasonic cleaner Transducer


Immersible Ultrasonic Transducer Metal Box For Tank Cleaning



Type: CCWY-2000P

Ultrasonic Power(w): 2000w

Work Frequency(khz):20-40

Platform Dimension(mm):650x450x100


Type & Spec. CCWY-300P CCWY-600P CCWY-1000P CCWY-1500P CCWY-2000P
Ultrasonic Power (W) 300W 600W 1000W 1500W 2000W
Work Frequency (KHz) 20-40 20-40 20-40 20-40 20-40
Platform Dimension (mm) 300×190×100 360×275×100 450×350×100 520×450×100 650×450×100


The mechanism of ultrasonic cleaning is the use of ultrasonic propagation in the cleaning solution when the radiation pressure, cavitation and acoustic streaming effect on the physical, the cleaning of dirt on the mechanical peeling effect, also can promote the cleaning liquid and dirt react to the purpose of cleaning objects. The frequency of the ultrasonic cleaning machine is 10~500 kHz, which is usually 20~50 kHz according to the size and purpose of the cleaning. With the increase of the frequency of ultrasonic transducer, using Langevin vibrator, vibrator, the thickness of longitudinal vibrator. In the miniaturization aspect, the radial vibration and the bending vibration of the circular vibrator are also used. Ultrasonic cleaning has been applied more and more widely in various industries, agriculture, household appliances, electronics, automobiles, rubber, printing, aircraft, food, hospitals and medical research industries.





Ultrasonic Immersible Transducers:

* adopts represents the present world advanced level of IGBT inversional ultrasonic generator.

Use import IGBT power components *, make the ultrasonic generator of reliability and frequency tracking sex with a qualitative leap.

* imported stainless steel structure, acid and alkali resistant, attractive and durable.

* ultrasonic vibration plate with ultrasonic generator for fission, with high frequency line seat connection, use and maintenance are convenient.

* mounting surface for flexible, according to the need of radiation surface seismic plate mounted on the underside of the cleaning trough, side or top surface.

The output power of the Ultrasonic Immersible  Transducer and Generator is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.

Thanks to structural Ultrasonic Immersible  Transducer and Generator, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.

It has one and half to two times the life can be maintained compare with conventional transducer equipment.




It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.
