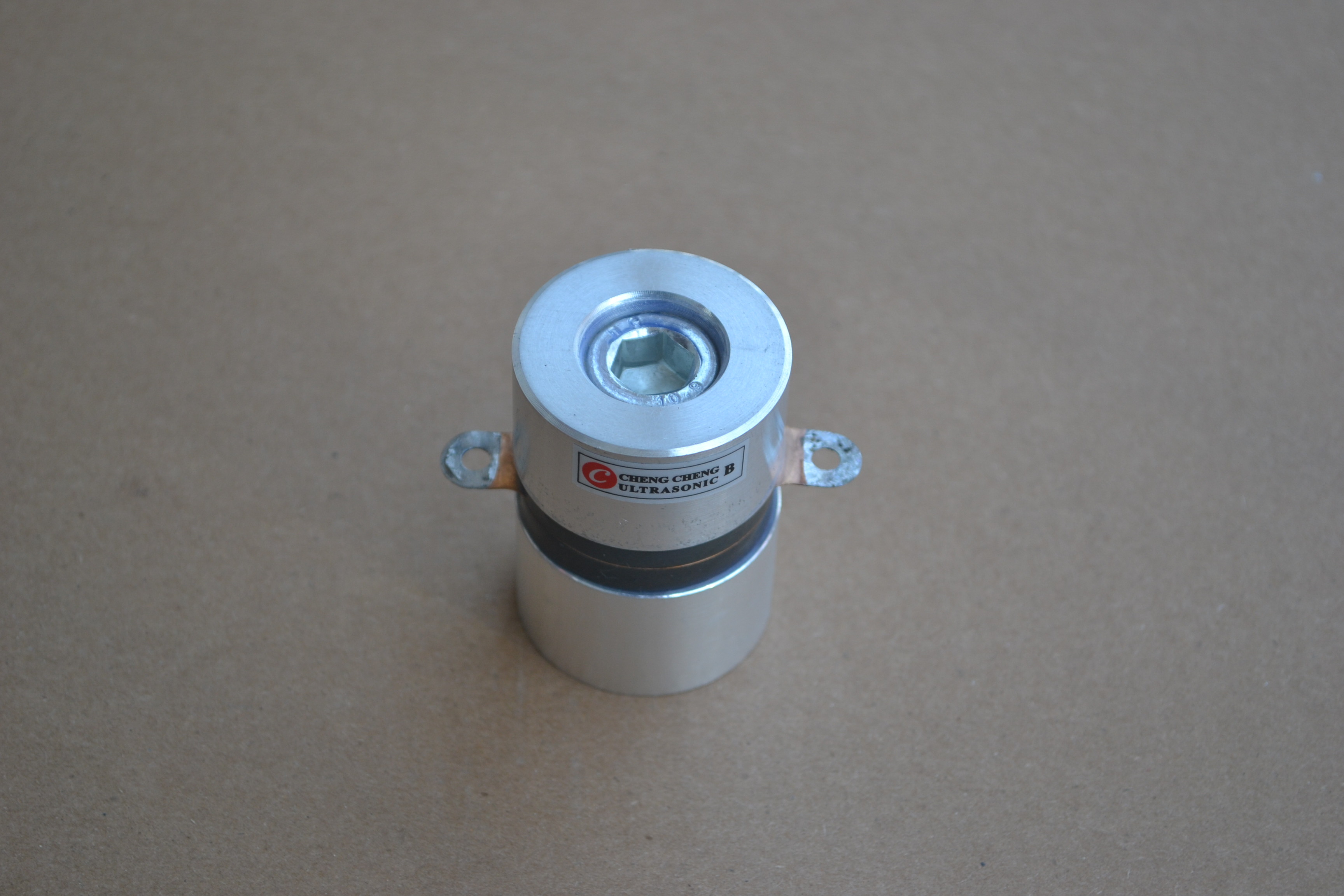

Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning

Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning
Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning

Large Image :  Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning Get Best Price

Product Details:
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $6--$15
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
High Light:

ultrasonic piezo transducer

,

piezoelectric ceramic transducer

Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning





double frequency sounder transducer and multi frequency ultrasonic transducer for cleaning equipment 51khz 135khz 25w



Quick Detail





double frequency ultrasonic transducer 51khz and 135khz /25w:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

51khz / 135khz Multi Frequency Ultrasonic Transducer For Ultrasound Cleaning





Description



double frequency ultrasonic transducer 51khz and 135khz /25w:

Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications of double frequency ultrasonic transducer 51khz and 135khz /25w:



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.





Specifications of double frequency ultrasonic transducer 51khz and 135khz /25w:





Type



Length

(mm)



Weigth(g)



Frequency(khz)



Resonance

Impedance(Ω)

Capacity

(Pf)±10﹪



Power

(w)



CCH-3830D-50/135

KHZ P4

42

135

51/135

<35

3200

25



























Competitive Advantage of double frequency ultrasonic transducer 51khz and 135khz /25w:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
