Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner

Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner
Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner

Large Image :  Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner Get Best Price

Product Details:
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $6--$15
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
High Light:

underwater ultrasonic transducer

,

40khz ultrasonic transducer



all kinds of ultrasonic cleaning transducer and ultrasonic transducer for ultrasonic jewelry cleaner pzt4 material





Quick Detail



28khz 100w ultrasonic cleaning transducer:

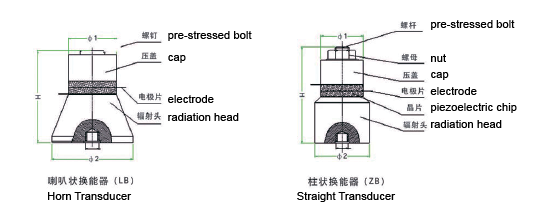

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner





Description



28khz100w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

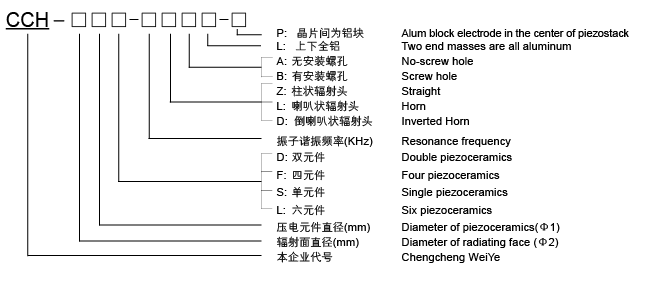

Naming methods as following:



Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner 0



Pzt4 Ultrasonic Cleaning Transducer 28khz 100w For Automatic Ultrasonic Cleaner 1



Specifications



28khz100w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-28LB

PZT-4

66

624

28

10-25

6600

100



Competitive Advantage



28khz120w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
