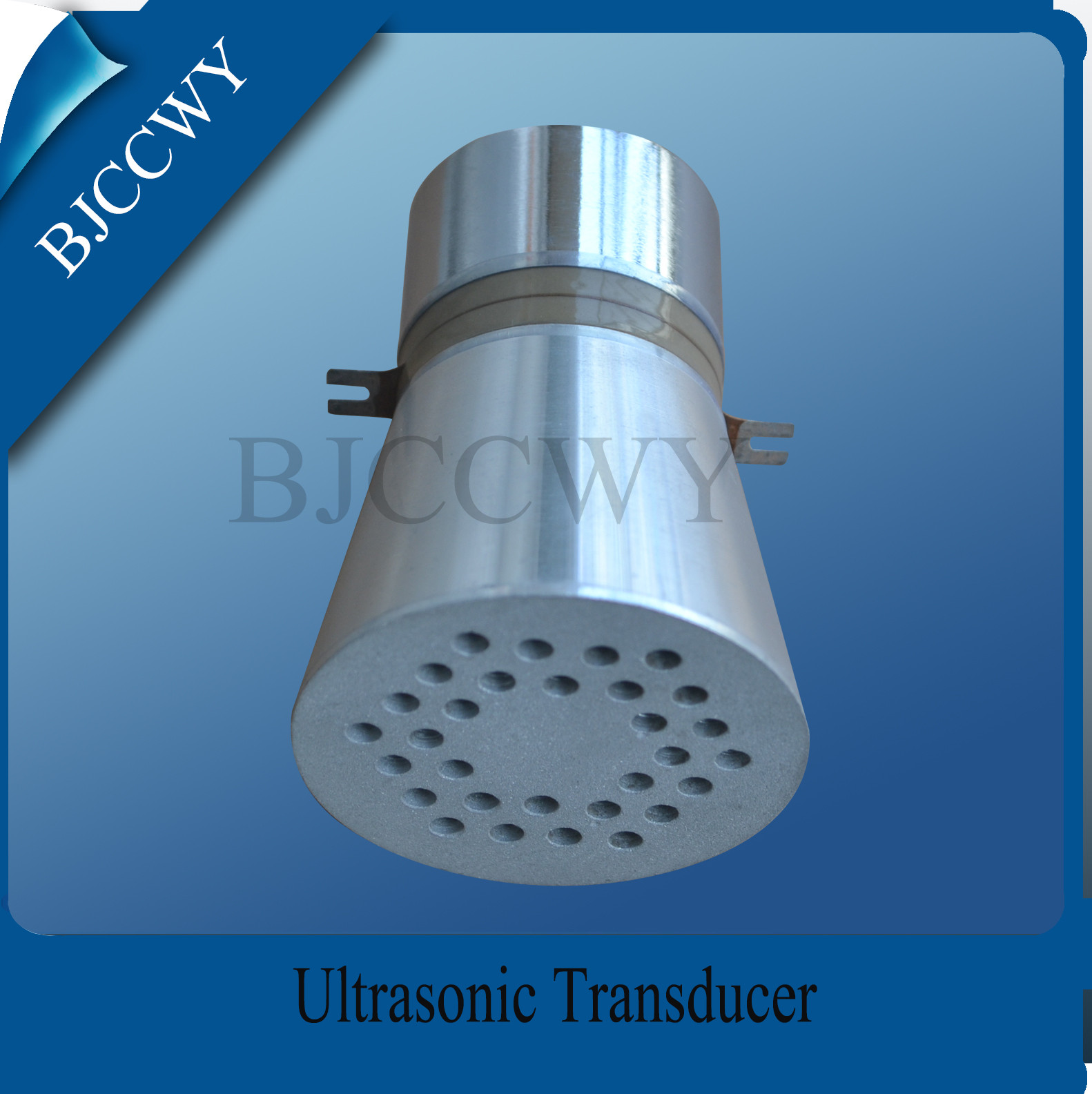

Industrial Pzt8 Ultrasonic Cleaning Transducer For Ultrasonic vibration Cleaner
1PCS
MOQ
$6--$15
Price
Industrial Pzt8 Ultrasonic Cleaning Transducer For Ultrasonic vibration Cleaner
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
High Light:

underwater ultrasonic transducer

,

waterproof ultrasonic transducer

Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Specifications
Product Description

22khz 100w pzt8 material piezo transducer and ultrasonic transducer for ultrasonic vibration cleaner



Quick Detail





22khz100w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Industrial Pzt8 Ultrasonic Cleaning Transducer For Ultrasonic vibration Cleaner





Description



22khz100w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:

Industrial Pzt8 Ultrasonic Cleaning Transducer For Ultrasonic vibration Cleaner 0



Industrial Pzt8 Ultrasonic Cleaning Transducer For Ultrasonic vibration Cleaner 1



Specifications



20khz100w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-22LA

PZT-8

95

910

22

20-40

5000

100



Competitive Advantage



20khz100w ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
