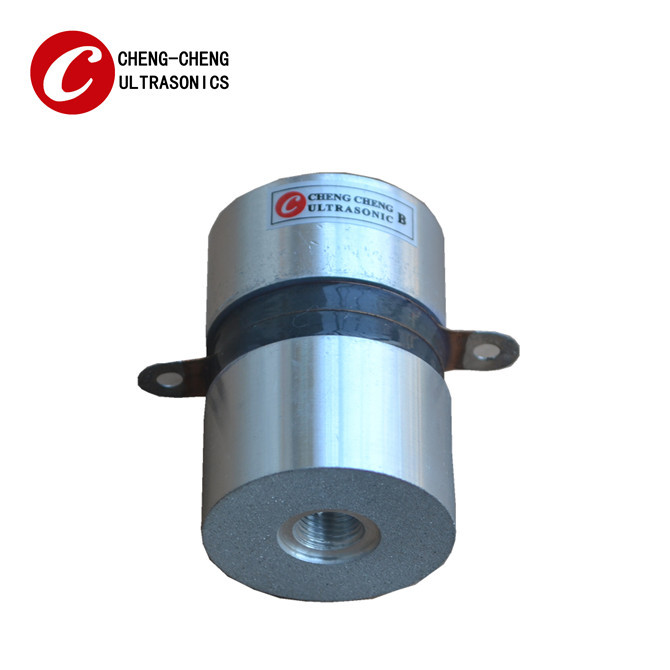

40K 73K/100K Three Frequency Ultrasonic Cleaning Transducer
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Naming methods as following
|
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
|
CCH-5839D-25/50LB PZT-4(双频)
|
80 | 540 | 25/50 | <35 | 4900 | 40 |
|
CCH-4039D-80/38ZB PZT-4(双频) |
61 | 330 | 38/80 | <35 | 4800 | 40 |
|
CCH-4039D-100/40ZB PZT-4(双频) |
54 | 280 | 40/100 | <35 | 3200 | 40 |
| CCH-5839D-25/50/80 PZT-4(三频) | 80 | 540 | 25/50/80 | <40 | 5000 | 35 |
|
CCH-4039D-100/73/40 PZT-4(三频) |
56 | 260 | 40/73/120 | <40 | 5100 | 35 |
|
CCH-4039D-120/80/40 PZT-4(三频) |
56 | 260 | 40/80/120 | <40 | 5100 | 35 |
|
CCH-5839D-25/50/80/120 PZT-4(四频) |
80 | 540 | 25/50/80/120 | <45 | 5200 |
30
|
|
CCH-4039D-120/170/80/40 PZT-4(四频) |
56 | 260 | 40/80/120/170 | <45 | 5400 | 30 |
