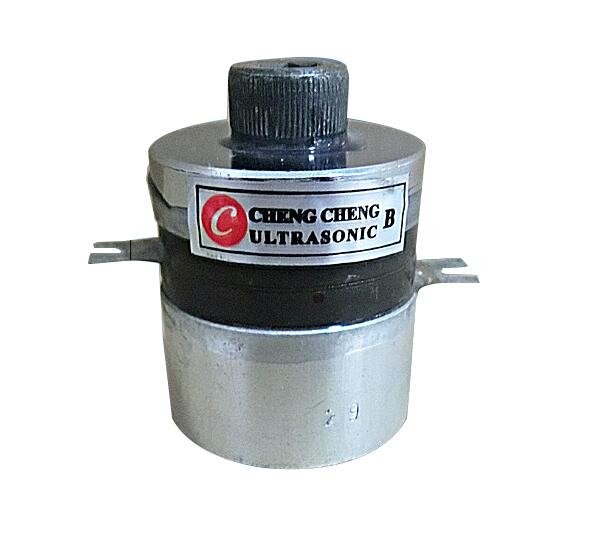

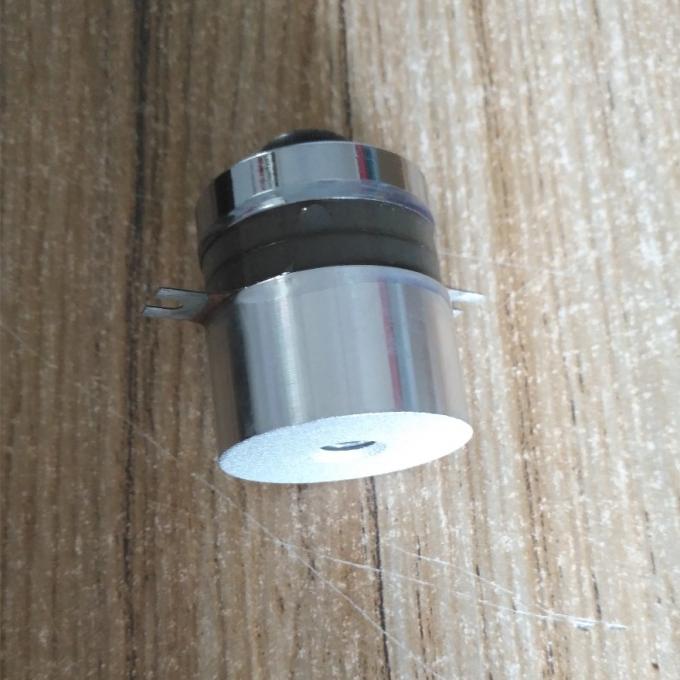

30w Piezo Ceramics 200 Khz Ultrasonic Transducer

30w Piezo Ceramics 200 Khz Ultrasonic Transducer

Large Image :  30w Piezo Ceramics 200 Khz Ultrasonic Transducer

Product Details:

Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: CCH-4535D-28ZB Pzt-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD5.6-USD6
Packaging Details: Carton or wooden case
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 4000000
Detailed Product Description
Product Name: Ultrasonic Cleaning Transducer Material: Aluminum, Stainless Steel
Frequency: 200K Application: Cleaner
Power: 30W Weight: 425g
High Light:

30w 200 khz ultrasonic transducer

,

Piezo 200 Khz Ultrasonic Transducer

,

Ceramics 200 Khz Ultrasonic Transducer

200k 30w Piezo Ceramics Ultrasonic Piezoelectric Transducer



electric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Naming methods as following

型 号

Type

全 长

Length(mm)

Weight (g)

频 率

Frequency(KHz)±4%

谐振阻抗

Resonance Impedance

(Ω)

电 容

Static Capacity

(pF)±10%

输入功率

Input Power(W)



CCH-3130D-200LB PZT-4 42 126 200 <50 3200 30



Piez













Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.



Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
