Accurate Ultrasonic Flow Meter For Ultrasonic Frequency / Intensity Energy Testing

1PCS
MOQ
Accurate Ultrasonic Flow Meter For Ultrasonic Frequency / Intensity Energy Testing
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

40khz ultrasonic transducer

,

underwater ultrasonic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



Ultrasound Meter Testing Ultrasonic Frequency and Intensity Energy





Measure the ultrasonic power,frequency of ultrasonic system.



Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of
ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).
The measuring instrument is measuring the instantaneous value of ultrasonic cleaning
machine wash force and average designed for the development of portable sound
pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid
surrounding the pressure as ultrasonic cleaning machine wash are determined by a net
force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank,
ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination,
the wash effect of management, industrial parts, and the analysis and research of the
ultrasonic irradiation intensity and wash effect, etc.

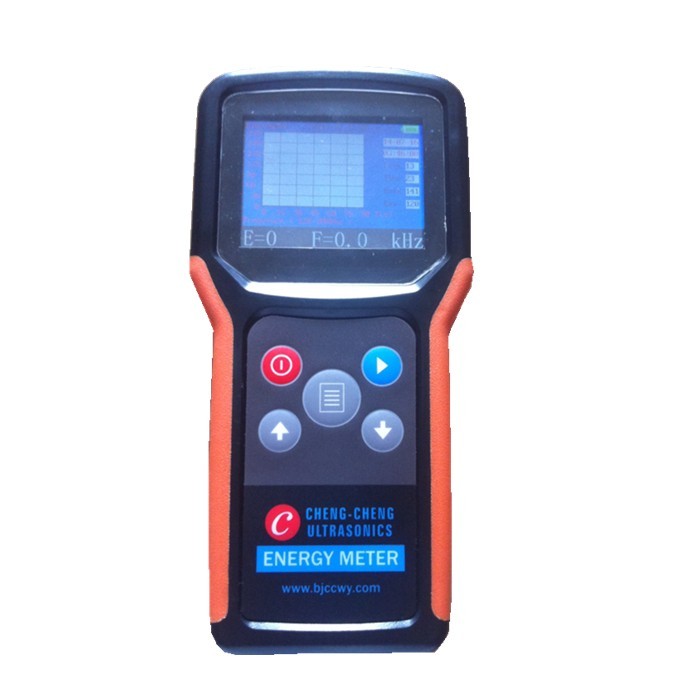

Accurate Ultrasonic Flow Meter For Ultrasonic Frequency / Intensity Energy Testing 0





a. This admeasuring apparatus simplicity of operator.measuring accurate
b. hand hold with lithium battery, can meet the power converter for chargingal
c. Color screen display, sound intensity and time curve real-time computation and store
the maximum and average sound intensity, and be able to replay the curve of the
specified period of time and data at any time.
d. It can be consecutive storage memory for 48 hours Data ,data upload.

e:The product can supply stand-alone software(purchase)you can upload to you
computer to run the equipment data trend analysis.
f.Customer special requirement(custom –made)This equipment can custom made supply
communication interface and client PLC connect ,convenient for remote data, real-time
monitoring, principle as shown in figure: real time monitoring principle as photos



Type

DBS-200S

Measuring

Range

0 -255 w/in2

Measuring Frequency

10 kHz – 200 kHz

Data Display

Color display, time and energy curve, maximum value, minimum value,

average value, record file number, ultrasonic frequency

Data storage

Time, frequency, instantaneous energy, continuous recording 48 hours,

360K point data(0.5”/point)

Electric Source

3.7V Lithium rechargeable battery

Detector Material

Stainless steel sealing pipe

Fluid Temperature

 0℃-150℃

Detector Diameter

25mm

Detector Length

1.0 m;0.5mStainless steel Detector+0.5m cable

Frequency showing

Yes

Data upload

Yes

Computer analysis software



Yes(additional cost)

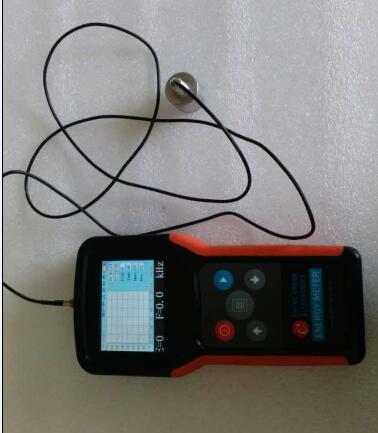

Accurate Ultrasonic Flow Meter For Ultrasonic Frequency / Intensity Energy Testing 1



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.



Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy.

Or as your requested by sea or other express, according to your quantity.



Certification:

CE, ISO9001, ROSH

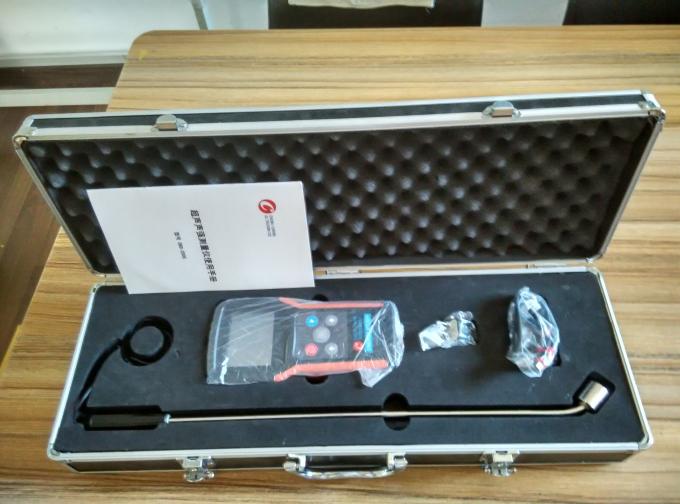

Accurate Ultrasonic Flow Meter For Ultrasonic Frequency / Intensity Energy Testing 2
