High Speed Ultrasonic Cleaning Transducer Piezoelectric 40khz 60w Heat Resistant

1pc
MOQ
$6--$10
Price
High Speed Ultrasonic Cleaning Transducer Piezoelectric 40khz 60w Heat Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Screw Hole:: Yes
Diameter Of Radiating Face(mm):: 48
Diameter Of Piezoceramics:: 38
Piezoceramics:: Double Piezoceramics
Resonance Frequency: 40
Header:: Straight
High Light:

underwater ultrasonic transducer

,

40khz ultrasonic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCH-4838D-40ZB
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

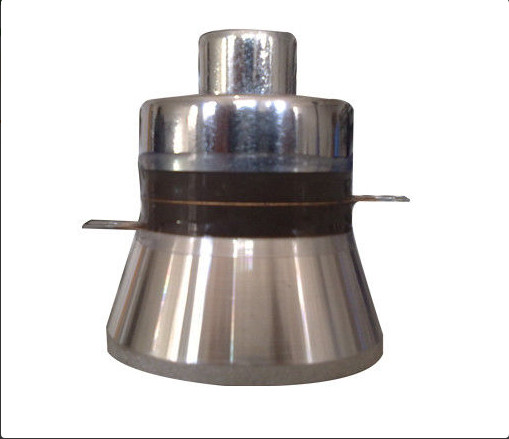

High Speed Piezoelectric Ultrasonic Transducer 40khz 60w Heat Resistance



Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.





Quick Detail



Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.


Description



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.

 .

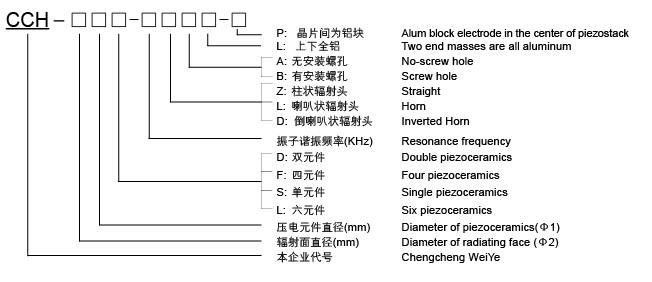

Naming methods as following:



CCH-4838D-40ZB



CCH: Cheng cheng weiye

48:    Diameter of radiating face(mm)

38:    Diameter of piezoceramics

D:     Double piezoceramics

40:   Resonance frequency

Z:     Straight

B:     Screw hole

Piezoelectric Ultrasonic Cleaning Transducer 50khz 30w For Jewelry






Specifications

60W 40KHz  Ultrasonic cleaning transducer for ultrasonic cleaning machine:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-4838D-40ZB

PZT-4

56

310

40

10-20

5400

60




Competitive Advantage



40khz60w ultrasonic cleaning transducer:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:







The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.
