50 * 17 * 5mm Ultrasonic Ceramic For Ultrasonic Transducer Good Heat Resistance

50 * 17 * 5mm Ultrasonic Ceramic For Ultrasonic Transducer Good Heat Resistance

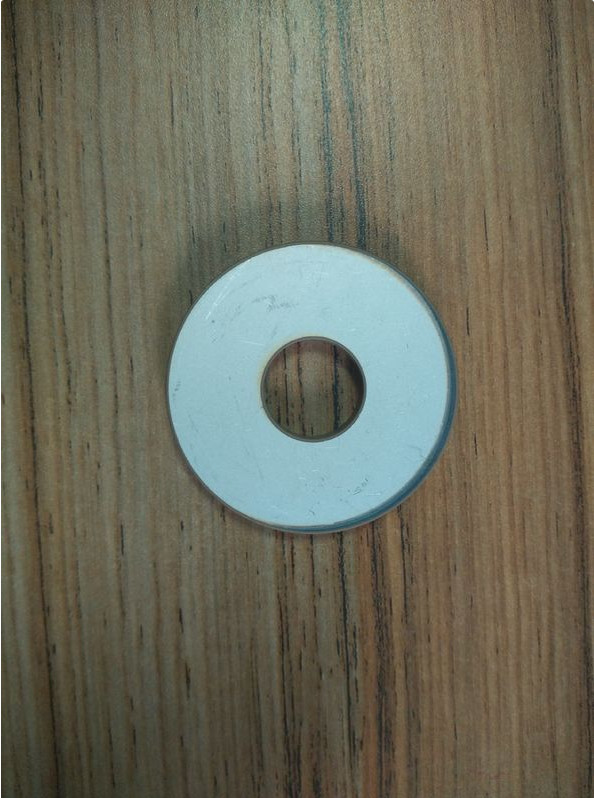

Large Image :  50 * 17 * 5mm Ultrasonic Ceramic For Ultrasonic Transducer Good Heat Resistance

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $5--$6
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 10000PER MONTH
Detailed Product Description
Moedel: 50*17*5mm PZT8 Capacity PF: 3160±10%
Weak Field Dissipation: ≤0.5% Strong Field Dissipation: ≤1.0%
Radial Frequen: 34.8±5% Thick Frequenc: 410



50*17*5mm P8 or P4 Material Round Shape Piezo Ceramic Disc or Customerized



Quick Detail



The piezoelectric ceramic wafer is electrical devices with a simple structure and light, with high sensitivity, no magnetic field spread without spillover, copper wire and magnets, low power consumption, less cost, easy mass production and the advantages of widely used. Suitable for ultrasonic and acoustic wave transmitting and receiving, piezoelectric ceramics is relatively large area and can also be used to detect pressure and vibration. The working principle is to use the reversible piezoelectric effect, applied voltage in the audio, and voice.



Piezo Electric Ceramic Piezoelectric Ceramic Discs For Ultrasonic cleaning transducer and Ultrasonic cleaning welding





Description



 Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications of



Piezoelectric Ceramic:

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on



Dimensions(mm) Capacity C(pF) Weak field dissipation
Tgδ (12v)
Strong field dissipation
Tgδ (400v)
Radial frequency
Fr(KHz)
Resonance impedance
Zm()
Thick frequency
Ft(KHz)
Coupling modulus
Kr(%)
Quality factor
Qm
Φ 50/Φ 17*5 3160± 10% 0.5% 1.0% 34.8± 5% 15 410 45 800


Specifications





Competitive Advantage



disc Piezoelectric Ceramic:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:



50 * 17 * 5mm Ultrasonic Ceramic For Ultrasonic Transducer Good Heat Resistance
