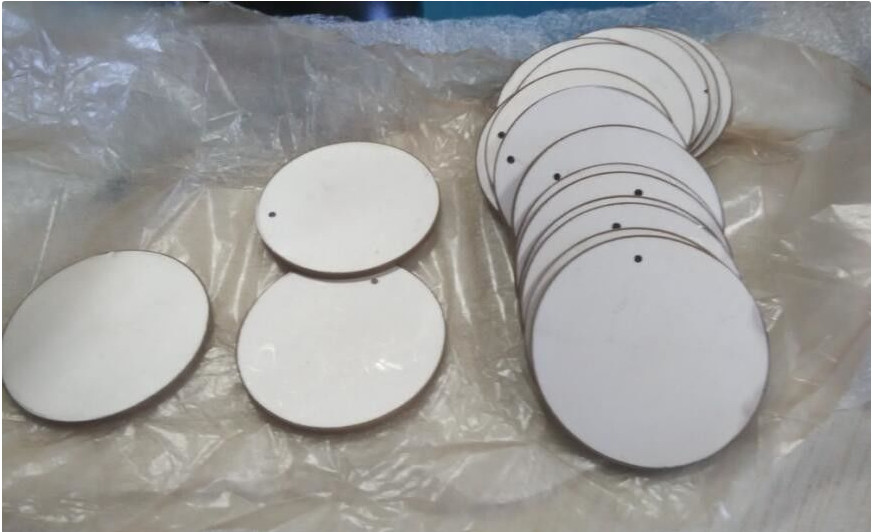

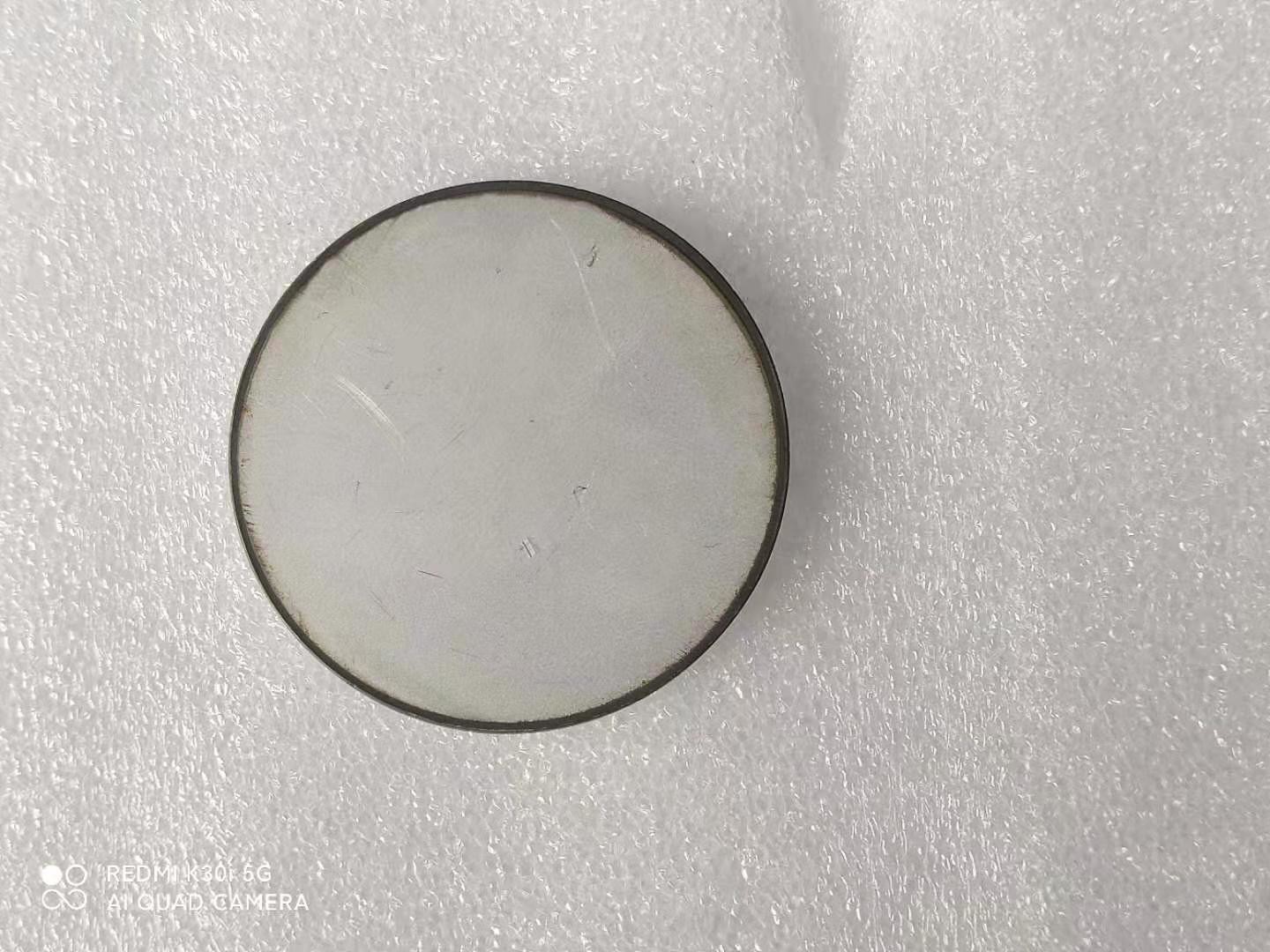

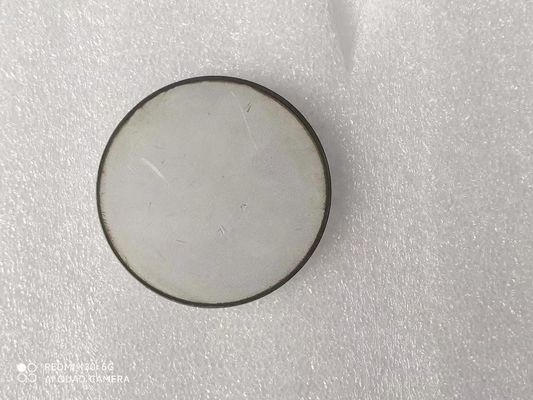

3/5/15 disc Piezoelectric Ceramic
3/5/15 small piezo disc for ultrasonic water meter
Quick Detail
3/5/15 disc Piezoelectric Ceramic:
all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.
3/5/15 Piezoelectric Ceramic Discs for ultrasonic water meter
Description
3/5/15 Piezoelectric Ceramic:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Specifications
3/5/15Ring Piezoelectric Ceramic:
|
dimension (mm) |
maximal displacement |
load weight |
drive voltage |
(um) |
|
3×5×15 |
≥5 |
5 |
0-300 |
≤0.01 |
Competitive Advantage
disc Piezoelectric Ceramic:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
