Curling Edge Piezo Ceramic Disc For Positive / Negative In One Surface Side

Curling Edge Piezo Ceramic Disc For Positive / Negative In One Surface Side

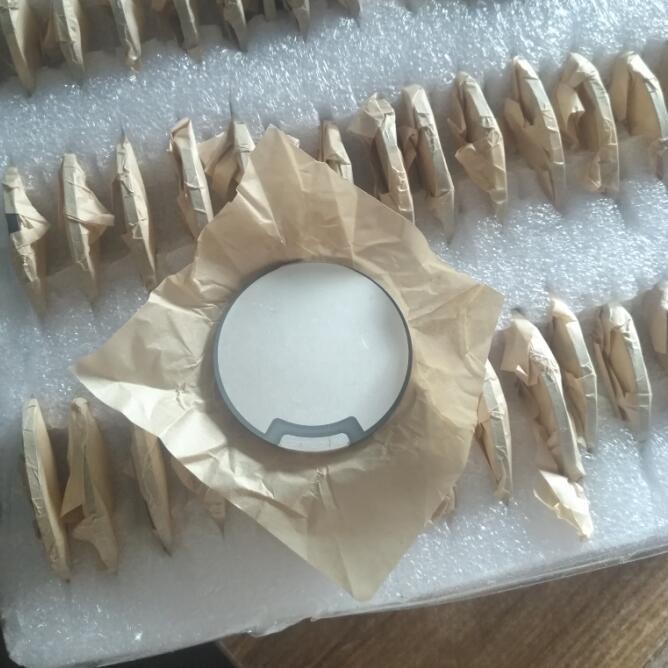

Large Image :  Curling Edge Piezo Ceramic Disc For Positive / Negative In One Surface Side

Product Details:

Place of Origin: cn
Brand Name: CCWY
Certification: RoSH

Payment & Shipping Terms:

Minimum Order Quantity: 20~50
Packaging Details: normal packing
Delivery Time: 30 days
Supply Ability: 1000PCS +per Month
Detailed Product Description
Product Name: Ultrasonic Piezoelectric Ceramic Use: Making Vibration Sensor
Dimension(mm): Φ25xΦ10x4 Capacity C (pF): 935±10%


Curling Edge Ceramics for Positive and Negative in one Surface side



Piezoelectric ceramic materials are electromechanical transducers: They can convert mechanical energy into electrical energy and vice-versa.  Piezoelectric ceramic material from us are used in sensors, actuators, gas ignition and in power transducers for high-power ultrasonic applications.








Dimension(mm) Capacity C (pF)

Weak
Field
Dissipatio
Tgδ (12v)

Strong
Field
Dissip
ationTg δ
(400v)

Radial
Frequency
Fr(KHz)

Reso
nance
Impedance
Zm (Ω )

Thick FrequencyFt (KHz) Coupling Modulus Kr (%) Quality Factor Qm
Φ10xΦ5x2 240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800
Φ16xΦ8x4 340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800
Φ25xΦ10x4 935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800
Φ30xΦ10x5 1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800
Φ32xΦ15x5 1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800
Φ35xΦ15x5 1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800
Φ38xΦ15x5 1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800
Φ40xΦ15x5 1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800
Φ42xΦ15x5 2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800
Φ42xΦ17x5 2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800
Φ45xΦ15x5 2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800
Φ50xΦ17x5 3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800
Φ50xΦ17x6 2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800













Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification: ø
CE, ISO9001, ROSH
