Product Description

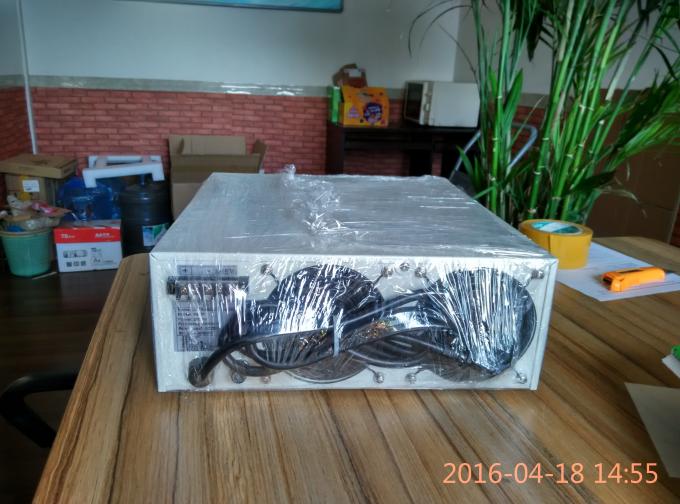

Efficiency Digital Ultrasonic Generator Circuit Automobile Classis Parts Cleaner


1. The ultrasonic generator can monitor the working frequency of high power ultrasonic system, power.

2. According to customer's request, real-time adjust various parameters: such as power, amplitude, running time and so on.

Low frequency tuning: adjust the frequency make the ultrasonic transducer work in the best state all the time, maximum efficiency, adjusting range 2%.

On completion of the low frequency automatic with: equipment after the initial setup, the generator can continuous operation without regulated.

Low amplitude control: transducer work load in the process of change, can automatically adjust the driving characteristics, to ensure stable amplitude of the tool head.

Protection: low system work in inappropriate operation environment, the generator will stop work and report to the police, according to protect equipment from damage.

Low amplitude adjustment: amplitude can be instantly increase or decrease in the working process, the setting of amplitude range: 0% ~ 100%.

Low frequency automatic search: can automatically determine the work frequency of the tool head and stored.


The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.


Key Technical Indexes:


  Power Rating







 Working Current









Warning: a generator should not be operated for long time at the current higher than the rated current.


Environment temperature:0-40C°

Relative humidity:40%--90%

Working frequency:28KHz(40 KHz,80 KHz,135 KHz)   5%

Time control:0~59'59''

Range of power control:0~100%    Digital control and adjustment of 16 grades

Internal over temperature protection:65 C°

Outer size:H x W x L = 160 x 360 x 500 (mm) (1500W)(above 1500W)

     H x W x L = 160 x 360 x 300 (mm) (1200W)(below 1200W)






widely used in ultrasonic cleaning equipment



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



We accept paypal or T/T, western union etc.



Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
