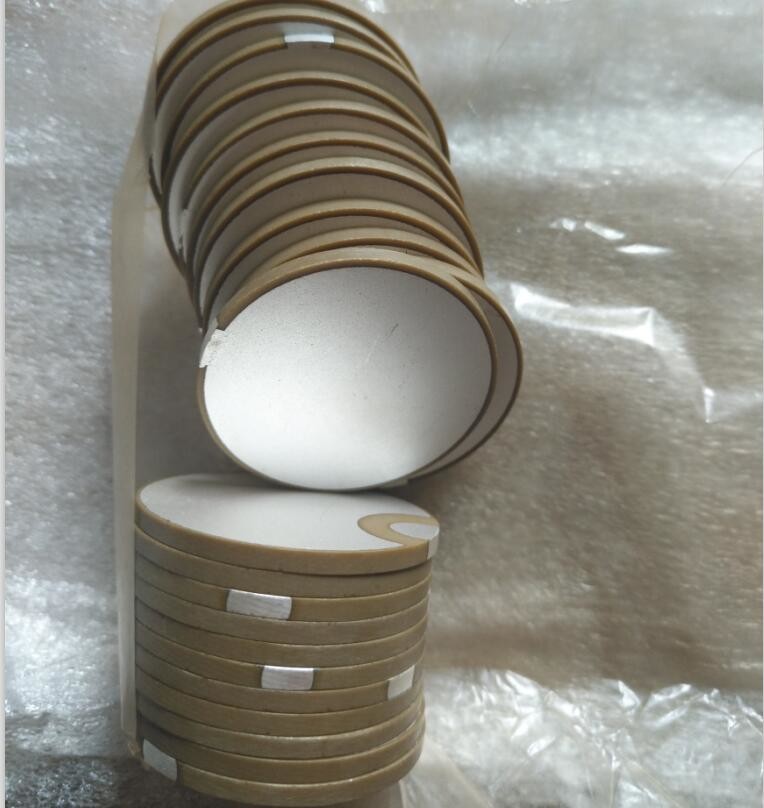

P5 Round Piezo Ceramic Plate Making Transducer

10
MOQ
USD1-USD 10
Price
P5 Round Piezo Ceramic Plate Making Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Product: Piezo Ceramics
Materials: P4,P5, P8 Etc
Shape: Ring, Tube, Round Etc
Size: As Customized
MOQ: 10-100PCS
Function: Making Transducer Or Sensors Etc
High Light:

piezo ceramics round plate

,

round Piezo Ceramic Plate

,

p5 Piezo Ceramic Plate

Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: Piezo ceramics
Payment & Shipping Terms
Packaging Details: Carton or wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000000
Product Description

Piezo Ceramics Round Plate



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.





Piezoelectric ceramic wafer is a simple and lightweight electrical device. It is widely used because of its high sensitivity,

no magnetic field spreading, no copper wire and magnet, low cost, low power consumption, and easy mass production.

Suitable for the transmission and reception of ultrasonic and infrasound waves, a relatively large area of piezoelectric ceramics

can also be used to detect pressure and vibration. The working principle is to use the reversibility of the piezoelectric effect  to apply audio voltage on it to emit sound.



Dimensions

(mm)

Capacity

C (pF)

Weak Field Dissipation

Tgδ (12v)



Strong Field Dissipation

Tg δ (400v)

Radial Frequency

Fr(KHz)

Resonance Impedance

Zm (Ω )



Thick Frequency

Ft (KHz)

Coupling Modulus

Kr (%)

Quality Factor

Qm

Φ10xΦ5x2 240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800
Φ16xΦ8x4 340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800
Φ25xΦ10x4 935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800
Φ30xΦ10x5 1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800
Φ32xΦ15x5 1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800
Φ35xΦ15x5 1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800
Φ38xΦ15x5 1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800
Φ40xΦ15x5 1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800
Φ42xΦ15x5 2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800
Φ42xΦ17x5 2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800
Φ45xΦ15x5 2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800
Φ50xΦ17x5 3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800
Φ50xΦ17x6 2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800
