Piezoelectric Ceramics Ring Shape Size Customized

1PCS
MOQ
Piezoelectric Ceramics Ring Shape Size Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Certification:: CE, ISO9001, ROSH
Shipping:: As Your Requested By Sea Or Other Express
Material: P4, P8 Or P5 Etc
Size: Customized
MOQ: 50pcs
Packing: Protection Carton
High Light:

Customized Piezoelectric Ceramics Ring

,

Shape Size Customized Piezoelectric Ceramics Ring

,

Piezoelectric Ceramics Ring Shape Custom

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

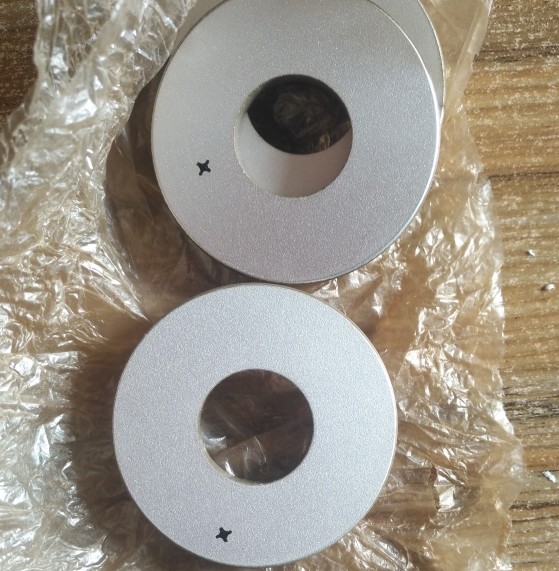

Piezoelectric Ceramics Ring Shape Size Customized



When the voltage acts on the piezoelectric ceramic, it will produce mechanical deformation with changes in voltage and frequency. On the other hand, when the piezoelectric ceramic is vibrated, an electric charge is generated. Using this principle, when an electric signal is applied to a vibrator consisting of two piezoelectric ceramics or one piece of piezoelectric ceramic and one metal piece, so-called bimorph element, ultrasonic waves are emitted due to bending vibration. In contrast, when an ultrasonic vibration is applied to a bimorph element, an electrical signal is generated. Based on the above effects, piezoelectric ceramics can be used as ultrasonic sensors.
Piezoelectric Ceramics Body
Piezoelectric ceramic chip is a simple and lightweight electrical device, which has been widely used due to its high sensitivity, no magnetic field dispersion, no copper wires and magnets, low cost, low power consumption, and ease of mass production. Suitable for the transmission and reception of ultrasonic and infrasound waves, piezoelectric ceramics with large area can also be used to detect pressure and vibration. The working principle is to use the reversibility of the piezoelectric effect and apply an audio voltage to it to emit sound.





Specifications





Dimension(mm)

Capacity

(pF)

Weak

 Field

Dissipatio

Tgδ (12v)

Strong

Field

Dissip

ationTg δ

 (400v)

Radial

Frequency
Fr(KHz)



Reso

nance

Impedance
Zm (Ω )

Thick

Fre

quency
Ft (KHz)

Cou

pling

Modulus
Kr (%)

Qu

ality

Factor
Qm

Φ10xΦ5

x2

240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800

Φ16xΦ8

x4

340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800

Φ25xΦ10

x4

935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800

Φ30xΦ10

x5

1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800

Φ32xΦ15

x5

1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800

Φ35xΦ15

x5

1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800

Φ38xΦ15

x5

1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800

Φ40xΦ15

x5

1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800

Φ42xΦ15

x5

2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800

Φ42xΦ17

x5

2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800

Φ45xΦ15

x5

2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800

Φ50xΦ17

x5

3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800

Φ50xΦ17

x6

2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800







Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional  manufacturer in ultrasonic transducers,

ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a

new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning

into an easy task. This product has been widely used in distillation, mix and mill for various chemical

procedures and has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.

Or as your requested by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
