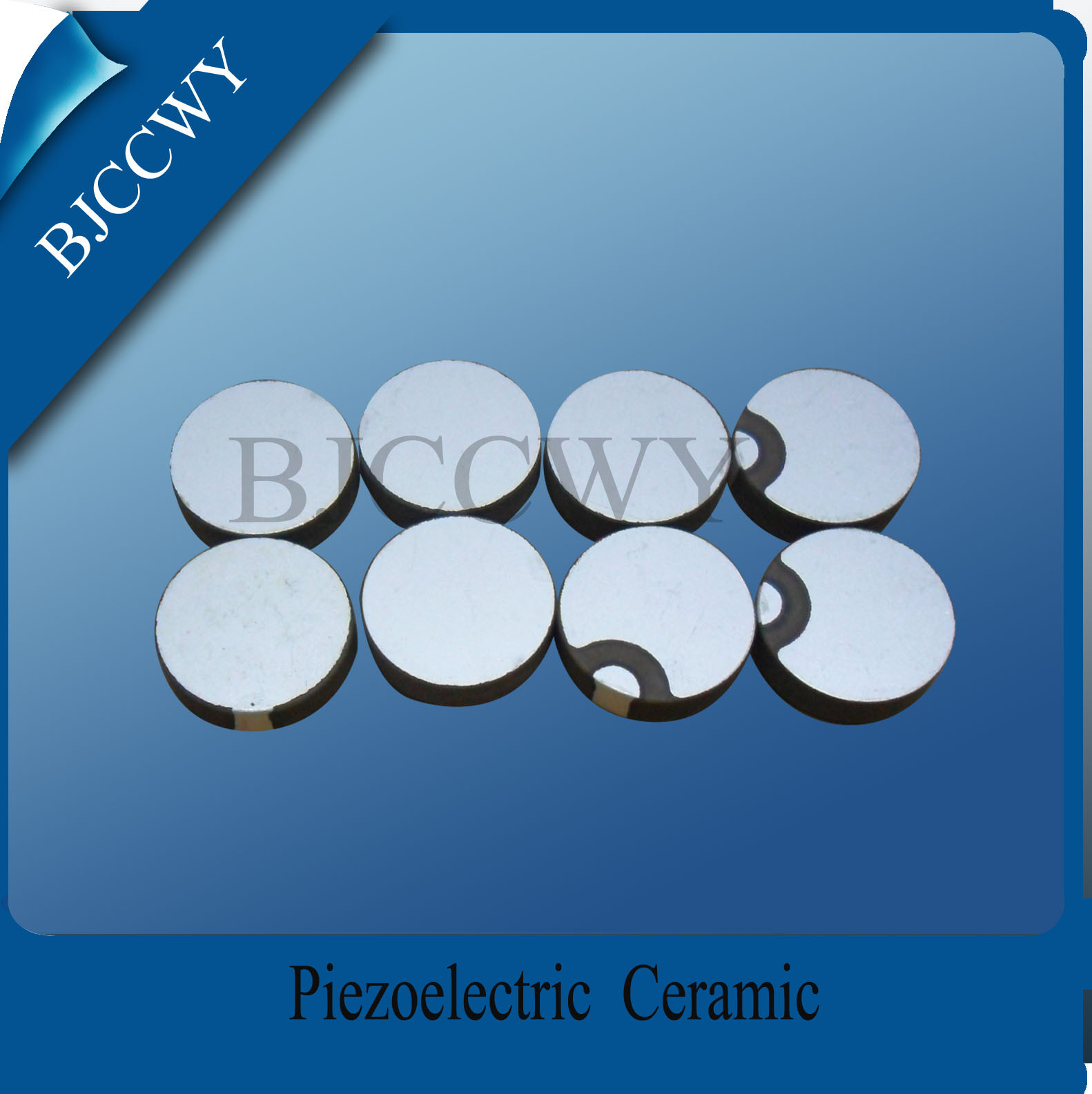

50 / 17 / 5 Piezo Ceramic Plate

1PCS
MOQ
$50--$120
Price
50 / 17 / 5 Piezo Ceramic Plate
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

piezoelectric element

,

piezoelectric ceramics

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



50/17/5 Ring Piezoelectric Ceramic





Quick Detail



50/17/5Ring Piezoelectric Ceramic:

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.

50 / 17 / 5 Ring Piezoceramic Element For Ultrasonic Welding Machine





Description



50/17/5 Ring Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



50/17/5 Ring Piezoelectric Ceramic:

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on





Specifications



50/17/5 Ring Piezoelectric Ceramic:

Dimensions

(mm)

Capacity

C(pF)

  Weak field dissipation

Tgδ (12v)

   Radial frequency

Fr (KHz)

  Resonance impedance

Zm (∩)

Coupling modulus

Kp (%)

Φ50xΦ17x5

6080±15%

≤2.0%

28.5±5%

≤120

≥45





Competitive Advantage



Ring Piezoelectric Ceramic:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
