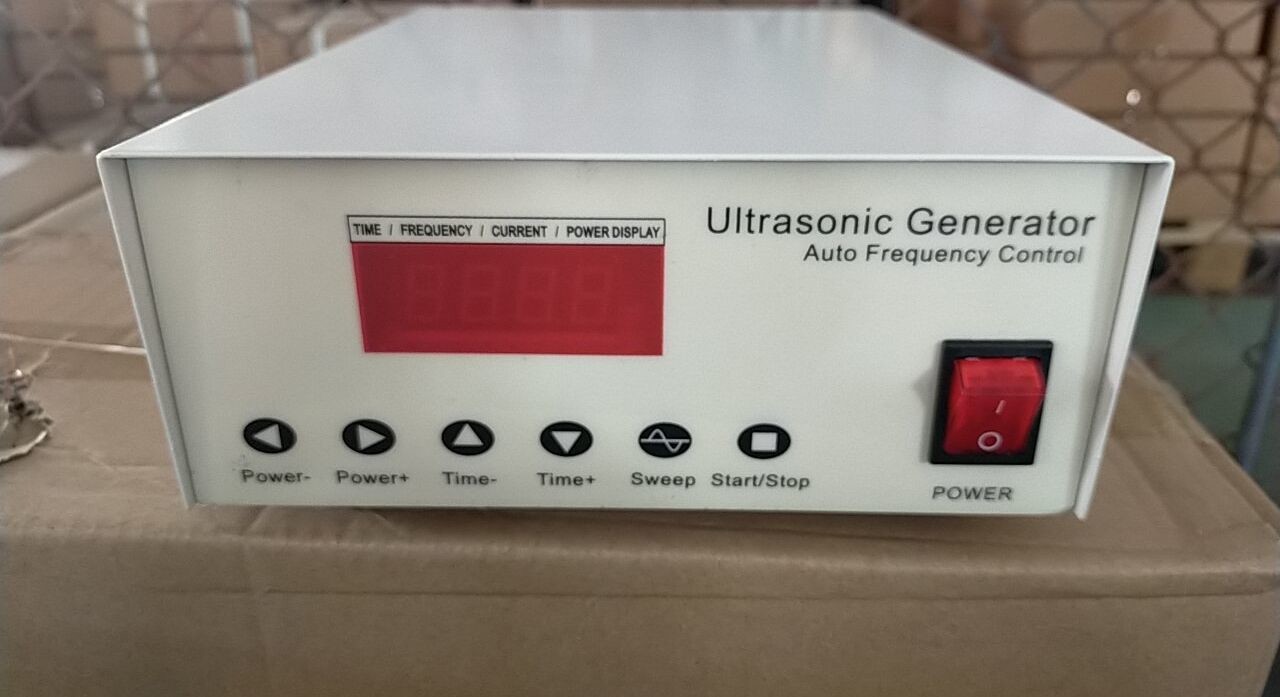

300W - 3000W High Power Ultrasonic Cleaning Generator 20K - 40K Stable Output.
The ultrasonic generator is a kind of equipment for electric conversion high frequency alternating current transducer to drive the corresponding transducer work, high power ultrasonic system is an important part, which can also be called the electronic box, ultrasonic power supply, ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, but in fact, the ultrasonic generator is only part of the ultrasonic drive power supply. The ultrasonic power supply according to incentive mode can be divided into self-excited and excitation, and the ultrasonic generator is that it refers to excitation type ultrasonic power, due to its excited oscillation circuit at the output power of a self-excited 10% higher, so most of the current ultrasonic generator was used as the driving power.
Driven power | 600W-900W | 900W-1500W | 1500W-2100W | 2100W-2700W | 3000W |
Power Control (Adjustable) |
0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
Working Frequency | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ |
Working voltage | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ |
Max.numbers of transducers |
12-18 pcs 60W | 12-30 pcs 60W | 12-42 pcs 60W | 12-54 pcs 60W | 12-60 pcs 60W |
Rated Current per transducer |
0.1-0.17A | 0.1-0.17A | 0.1-0.17A | 0.1-0.14A | 0.1-0.14A |
Output Current range |
1-3A | 1-4.5A | 1-6A | 1-7A | 1-7.5A |
Time Control Range |
0-59’59” | 0-59’59” | 0-59’59” | 0-59’59” | 0-59’59” |
Environment temperature |
0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
Relative Humidity | 40%-90% | 40%-90% | 40%-90% | 40%-90% | 40%-90% |
Net weight | 10KG | 11KG | 12KG | 12KG | 12KG |
Dimension (mm) | 390×350×130 | 390×350×130 | 390×350×130 | 390×350×130 | 390×350×130 |
Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Application
1. To achieve high accuracy, high mesh screening at the same time,
the control of a narrow particle size range.
2. Can be used single layer and multilayer.
3. Screen self-cleaning function: greater than 500 mesh sieve,
no mesh plug, no attenuation screening efficiency.
4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,
high density, high light specific gravity and other screening problem.
5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.
