100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator

1PCS
MOQ
100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

ceramic piezoelectric transducer

,

ultrasonic sound generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

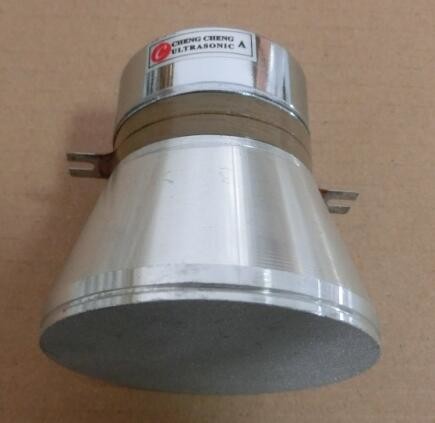

100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator





Main Features:
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance , ensuring high conversion efficiency.







Description:







The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.

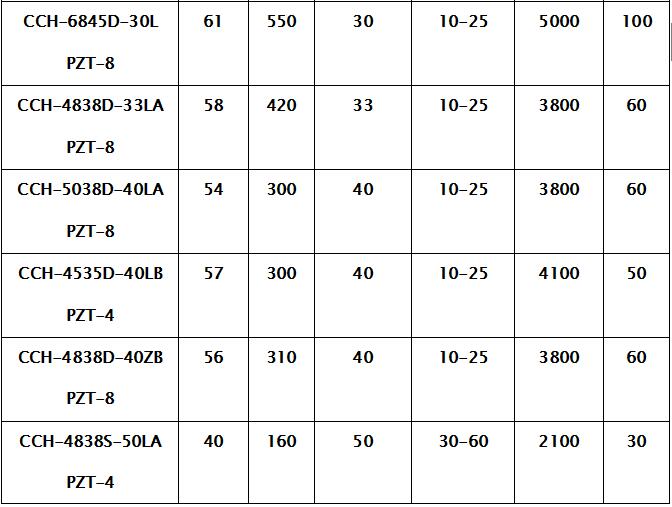

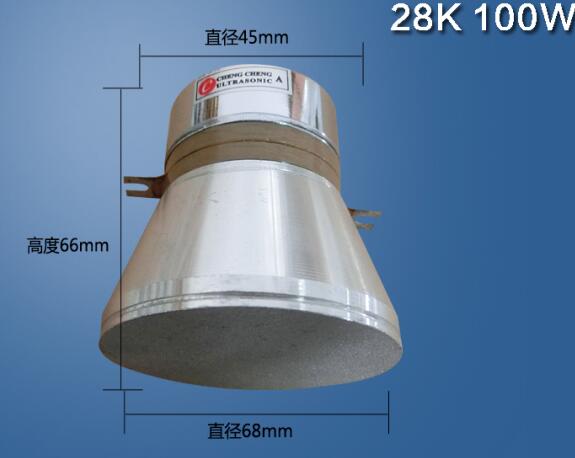

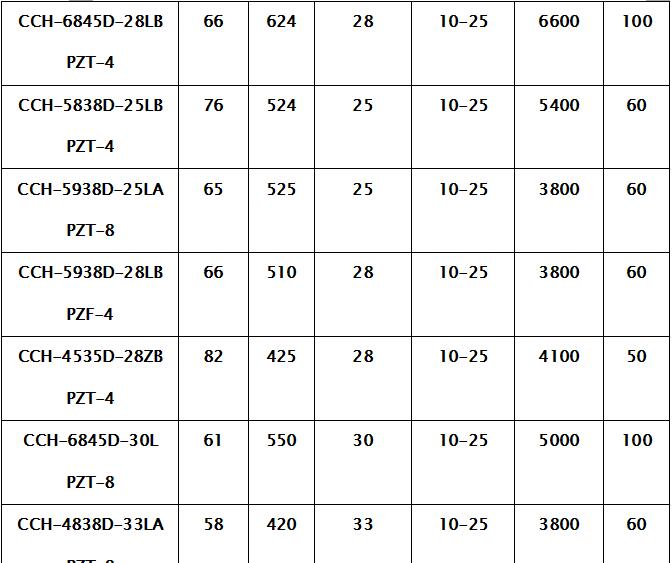

Specifications:



100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator 0



100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator 1

100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator 2



Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.



Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ROSH, ISO9001



Company pictures:





100W 28K Low Frequency Ultrasonic Cleaning Transducer Matched with Generator 3
