Ultrasonic Driving Circuit Board For Making Ultrasonic Cleaner / Ultrasound Study

1PCS
MOQ
$10-$800
Price
Ultrasonic Driving Circuit Board For Making Ultrasonic Cleaner / Ultrasound Study
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

industrial ultrasonic cleaner

,

household ultrasonic cleaner

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

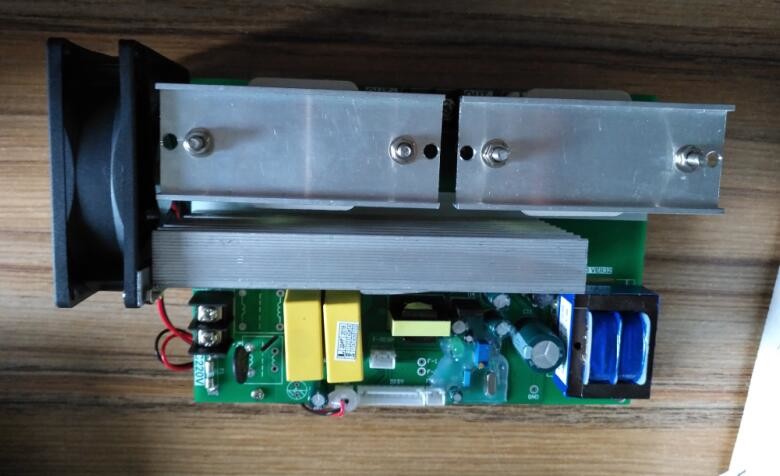

Ultrasonic Driving Circuit Board for Making Ultrasonic cleaner and Ultrasound Study



The function of the ultrasonic generator is to convert the mains power into the high-frequency alternating current signal matched with the ultrasonic transducer to drive the ultrasonic transducer. Considering the conversion efficiency, high power ultrasonic power supply usually adopts the circuit form of switching power supply.



An ultrasonic generator to produce a signal of a specific frequency

A signal may be either a sinusoidal signal or a pulse signal, which is the frequency at which the transducer works.
Ultrasonic equipment commonly used ultrasonic frequency of 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz, 80KHz, 100KHz or more has not been widely used


Applications of Ultrasonic Cleaner:

In all of the cleaning method, ultrasonic cleaning is the highest efficiency, the effect of one of the best, so ultrasonic cleaning can achieve such effect, with its unique working principle and cleaning method closely related. We know, in production and life, need to clean a lot of things, need to clean and type of link also many, for example: remove contaminants, dredge the objects tiny holes, common manual cleaning method of alien objects and object shelter undoubtedly cannot meet the requirements, even steam cleaning and high pressure water jet cleaning also cannot satisfy the requirement of high cleanness-degree, of ultrasonic cleaning objects can also achieve kill bacteria, soluble organic pollutants, avoid corrosion, therefore, ultrasonic cleaning is increasingly widely used in many fields:
(1) machinery industry: rustproof oil removal, Measuring the cleaning; Mechanical parts oil removal derusting, Engine, carburetor and automobile parts of cleaning, Filters, of filter dredge cleaning, etc.
(2) the surface treatment industry: preplated oil removal derusting, Ion plating before cleaning; Phosphorprocess; Remove carbon deposition; Remove oxide skin; Remove polishing compound; The metal workpieces surface activation treatment etc.
(3) instrumentation industry: precision parts high cleanness-degree cleaning before assembly etc.
(4) electronics industry: printed circuit board except rosin, welding spot, High-pressure contacts such mechanical electronic parts of cleaning, etc.
(5) the medical industry: medical equipment of cleaning and disinfection, sterilization, experimental vessels cleaning, etc.
(6) semiconductor industry: semiconductor chip high cleanness-degree cleaning.
(7) clocks first, decoration industry: remove oil, dirt, oxidation layer, polishing compound etc.
(8) chemical, biological industry: the experiment the vessels of cleaning, divides dirty.
(9) the optical industry: optical device oil removal, except perspiration, soot cleaning, etc.
(10) of the textile industry: cleaning textile spindle, the spinneret etc.
(11) petrochemical: metal mesh cleaning dredge and chemical container, switch cleaning, etc.





Competitive Advantage of Ultrasonic Cleaner:
Compared with other kinds of cleaning method, ultrasonic cleaning machines showed great superiority. Especially in specialization, collectivization production enterprise, has gradually with ultrasonic cleaning machines replaced the traditional dip, scrub, pressure flushing, vibration cleaning and steam cleaning process method. Ultrasonic applize high efficiency and high cleanness, thanks to its sound waves in a medium transmission are produced when penetrability and cavitation shock wave. So easily with complicated appearance, inner cavity and fine empty parts clean, for most of the oil removal, rust, phosphating process, such as in ultrasonic under the action of just two or three minutes to finish, its velocity than traditional method can improve the several times to dozens of times, cleanness can achieve high standard, which in many to product surface quality and productivity to demand higher occasions, the more showcases with other treatment methods are hard to achieve or irreplaceable results.

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
