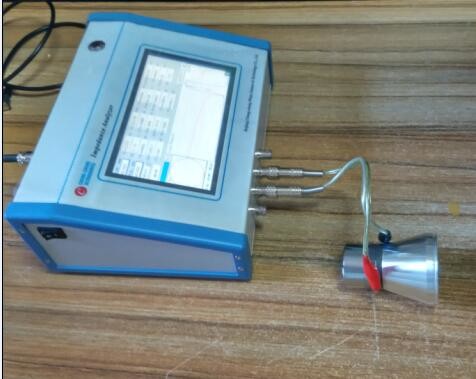

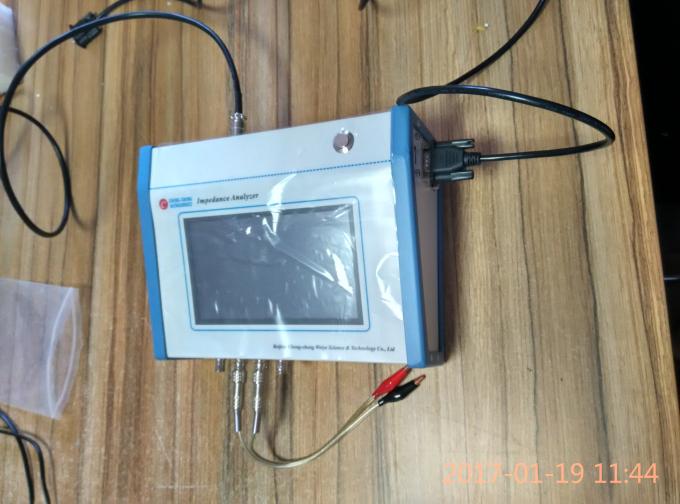

Portable Touch screen Ultrasonic Impedance Analyzer Testing Frequency
Portable Touch screen Ultrasonic Impedance Analyzer Testing Frequency
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
High Light:

impedance instrument


ultrasound impedance

Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Product Description


Portable Touch screen Ultrasonic Impedance Analyzer Testing Frequency



Portable Touch screen 7.8inch

Outer dimension: 24x19x10cm





Frequency Range


Measurement Index

All parameter, graphics

Measurement Accuracy

<0. 1%

Measurement Speed

5 second/piece(equivalent

to 1000 scan dots)

Frequency Accuracy


Phase Resolution

0.15 degree

Enviroment temperature

10-40 cº

Impedance Range


Frequency Step



Ultrasonic equipment testing,

ultrasonic cleaning,

ultrasonic welding,

ultrasonic medical






Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax




Including: piezoelectric ceramic transducer, ultrasonic cleaning machine, ultrasonic plastic welding, acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization, ultrasonic scaling, reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motor, and all other devices and equipment used in piezoelectric and ultrasonic.



Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional



 in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
