50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC

50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC

Large Image :  50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description


50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC


Measure the ultrasonic power,frequency of ultrasonic system.


Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of
ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).
The measuring instrument is measuring the instantaneous value of ultrasonic cleaning
machine wash force and average designed for the development of portable sound
pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid
surrounding the pressure as ultrasonic cleaning machine wash are determined by a net
force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank,
ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination,
the wash effect of management, industrial parts, and the analysis and research of the
ultrasonic irradiation intensity and wash effect, etc.

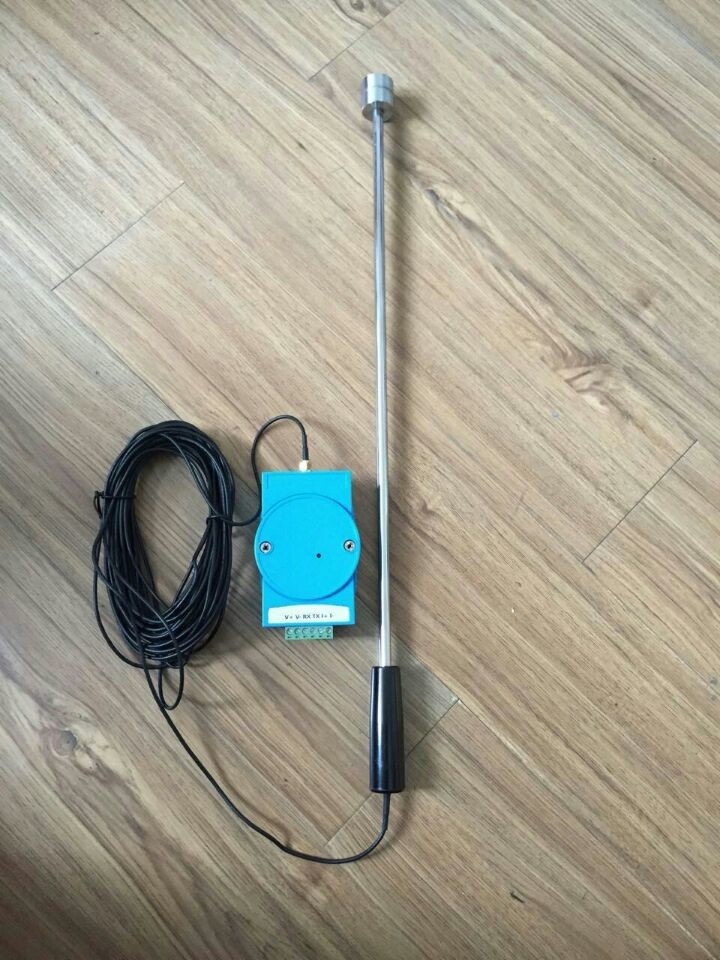

DBS201-1000 ultrasonic intensity monitor is mainly used for continuous monitoring of ultrasonic cavitation intensity in ultrasonic cleaning system. The instrument provides the output current of the non isolated 4-20mA, which is proportional to the ultrasonic cavitation intensity. Instrument can be connected with PLC, PLC loop recommended resistance of 250 ohm, the corresponding voltage of 1-5V. The measuring probe is installed on the ultrasonic groove to realize the continuous measurement of the cavitation of the ultrasonic groove. Monitor the standard DIN rail installation.



a. This admeasuring apparatus simplicity of operator.measuring accurate
b. hand hold with lithium battery, can meet the power converter for chargingal
c. Color screen display, sound intensity and time curve real-time computation and store
the maximum and average sound intensity, and be able to replay the curve of the
specified period of time and data at any time.
d. It can be consecutive storage memory for 48 hours Data ,data upload.

e:The product can supply stand-alone software(purchase)you can upload to you
computer to run the equipment data trend analysis.

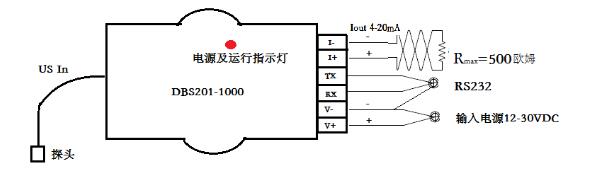

f.Customer special requirement(custom –made)This equipment can custom made supply
communication interface and client PLC connect ,convenient for remote data, real-time
monitoring, principle as shown in figure: real time monitoring principle as photos




Power input

12-30V DC

Reverse polarity Protection


Current output

4mA – 20mA


Non isolation

Loop maximum resistance

500 OHM

Sound intensity range

0-250 W/gal

Ultrasonic frequency range


Work Environment




50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC



50VDC Liquid Container Ultrasonic Sound Intensity Monitor Contact with PLC
