Tubular Reactor Equipment Tank Cleaning Or Refinement Of Scavenge Oil And Palm Oil

Tubular Reactor Equipment Tank Cleaning Or Refinement Of Scavenge Oil And Palm Oil

Large Image :  Tubular Reactor Equipment Tank Cleaning Or Refinement Of Scavenge Oil And Palm Oil

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $2000-3000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description



Tubular Reactor Equipment Tank Cleaning Or Refinement Of Scavenge Oil And Palm Oil


Quick Detail


Because of the unique characteristics of the design of tube type cleaning, ultrasonic vibration rod is especially suitable for various pipelines, the principle is to transform electrical energy into ultrasonic energy, and passed to the inner wall of the scale, water pipeline, according to the law, to get a lot of energy. The shock wave of ultrasonic waves generated in the process of transferring the scale, water, pipeline wall resonance, due to scale, the oscillation frequency of the inner wall of the pipe, water, water molecules in the pipeline collision impact force, strong impact for students, the fouling layer on the surface of heat, the crisp, debonding and crushing and, with the equipment of the sewage discharge, so as to realize the ultrasonic vibration rod to clean the pipe wall. In addition, the ultrasonic vibration rod can also be used for tank cleaning, can be placed in any position of the tank, the use is convenient, and the volume of space is very small, the cleaning does not stay dead.

Description

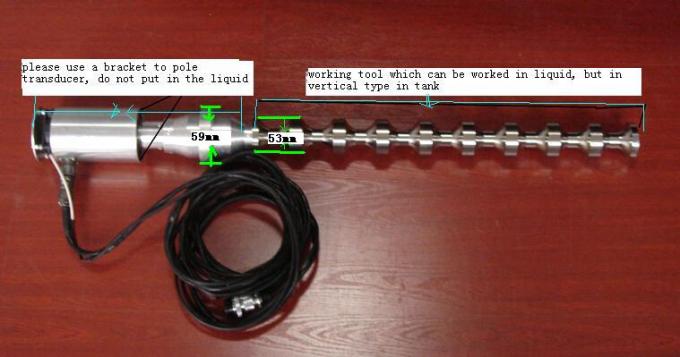

15KHZ 1500W Titanium Alloy Ultrasonic Tubular Transducer :


Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.
It has one and half to two times the life can be maintained compare with conventional transducer equipment.
The round shape makes it possible to install very simply in every place so that the designing of the bath is simple.
The tube structure guarantees watertightness.




Applications


Titanium Alloy Ultrasonic Tubular Transducer :

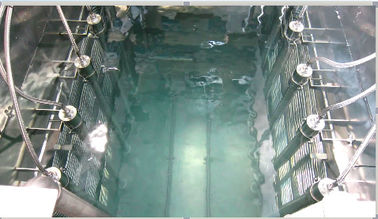

It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.




Specifications





Tubular Equipment
Type

Frequency
(KHz)

Ultrasound
Output(W)

Effective Length
(mm)

Total length(mm)

Diameter
(mm)

Static Capacity
(pF±10%)

JT20-210

20

1000

210

570

Φ53

68000

JT20-350

20

1000

350

710

Φ53

68000

JT20-490

20

1500

490

850

Φ53

68000

JT20-630

20

2000

630

990

Φ53

68000





Competitive Advantage


Titanium Alloy Ultrasonic Tubular Transducer :

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Payment:

We accept paypal or T/T, western union etc.

Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification: ø

CE, ISO9001, ROSH
