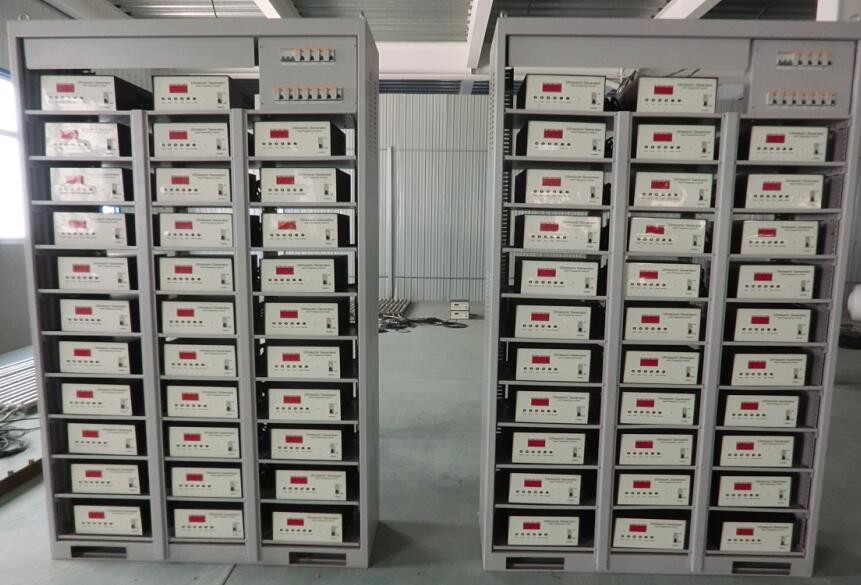

Efficiency Ultrasonic Controller / Drive Power Supply Good Heat Resistance
Ultrasonic generator, also known as ultrasonic drive power supply, electronic box, ultrasonic controller, is an important part of high power ultrasonic system.
The function of ultrasonic generator is to convert the electric power into a high frequency AC signal which is matched with the ultrasonic transducer, which drives the ultrasonic transducer to work. High power ultrasonic power supply from the conversion efficiency to consider the general use of switching power supply circuit.
Ultrasonic power is divided into self excitation and its excitation power supply, the self excitation power supply is called ultrasonic analog power supply, which is called ultrasonic generator.
ultrasonic generator for ultrasonic cleaner:
The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer, automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With a computer fault location and display system, its operation and maintenance are more convenient.
Key Technical Indexes:
Warning: a generator should not be operated for long time at the current higher than the rated current.
Environment temperature:0-40C° Relative humidity:40%--90% Working frequency:28KHz(40 KHz,80 KHz,135 KHz) 5% Time control:0~59'59'' Range of power control:0~100% Digital control and adjustment of 16 grades Internal over temperature protection:65 C° Outer size:H x W x L = 160 x 360 x 500 (mm) (1500W)(above 1500W) H x W x L = 160 x 360 x 300 (mm) (1200W)(below 1200W)
◊ High efficiency ◊ High amplitude: ◊ Good heat resistance ◊ Good construction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
We accept paypal or T/T, western union etc.
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
