HomeProductsMulti Frequency Ultrasonic Transducer

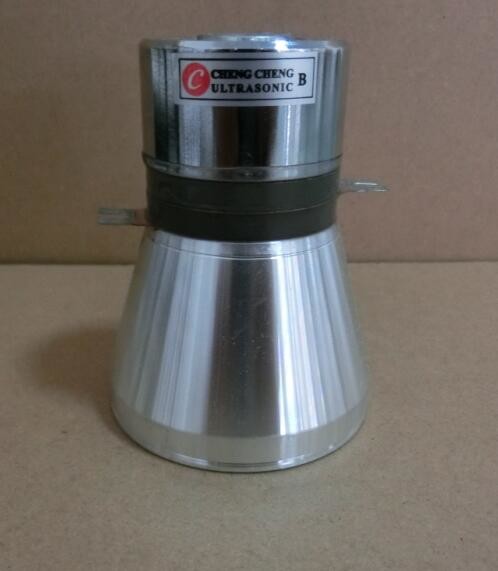

40khz / 80khz / 120khz / 170khz Multi Frequency Ultrasonic Transducer , Ultrasonic vibration Transducer

40khz / 80khz / 120khz / 170khz Multi Frequency Ultrasonic Transducer , Ultrasonic vibration Transducer

Large Image :  40khz / 80khz / 120khz / 170khz Multi Frequency Ultrasonic Transducer , Ultrasonic vibration Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $8--$15
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description

40khz / 80khz / 120khz / 170khz Multi Frequency Ultrasonic Transducer , Ultrasonic vibration Transducer





Quick Detail



three frequency ultrasonic transducer

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description



Ultrasonic cleaning transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in  ultrasonic cleaning machine and high-power industry cleaning devices.



Ultrasonic wave is the transducer to convert the high frequency electric energy into mechanical vibration. The characteristics of the transducer are determined by material selection and fabrication process, and the performance and service life of the transducer with the same size are different. High power ultrasonic transducer used in the application in ultrasonic plastic welding machine, ultrasonic metal welding machine, various hand-held ultrasonic tools, continuous ultrasonic emulsification homogenizer, ultrasonic atomizer, engraving machine and other equipment. Commonly used 20KHz 28KHz 35KHz 40KHz 55KHz 70KHz 15KHz and other products can also be designed according to customer specific requirements of the non-standard transducer, in order to meet the various needs



There are many materials with piezoelectric effect, such as quartz, potassium sodium potassium sodium and other crystal, such as barium titanate, lead titanate, lithium

Lithium, lead titanate and other ceramics are materials with piezoelectric effect, piezoelectric effect on the piezoelectric effect is the inverse piezoelectric effect.

The piezoelectric materials used in medical ultrasonic transducers are replaced by the lead zirconium titanate.

The positive and negative surfaces of the piezoelectric body are polarized, and the upper layer of the excitation electrode is covered, and the piezoelectric vibrator is made.

Piezoelectric effect.

Piezoelectric transducer is equivalent to a capacitor (with capacitive effect), in the form of ultrasonic emission circuit and parallel resonant high frequency coil.

Excitation voltage, mechanical vibration and ultrasonic wave. The frequency of the alternating voltage applied on the piezoelectric transducer and the natural frequency of the piezoelectric vibrator of the transducer

Equal, to obtain the maximum mechanical vibration.

Specifications







Type

Length

(mm)



Weigth(g)



Frequency(khz)



Resonance

Impedance(Ω)

Capacity

(Pf)±10﹪



Power(w)



CCH-4040D-40/80/120/170KHZ P4

         56

260

40/80/120

/170

<45

5400

30























Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new  product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy  task. This product has been widely used in distillation, mix and mill for various chemical procedures and  has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your

requested  by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH

 40khz / 80khz / 120khz / 170khz Multi Frequency Ultrasonic Transducer , Ultrasonic vibration Transducer
