Complex Ultrasonic Impedance Analyzer Electrical Components TUV

Complex Ultrasonic Impedance Analyzer Electrical Components TUV

Large Image :  Complex Ultrasonic Impedance Analyzer Electrical Components TUV

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Detailed Product Description

Ultrasonic Impedance Analyzer Complex Impedance Electrical Components



Specifications

Impedance analyzer is the instrument applicable for measuring
characteristics of complex impedance electrical components.

Impedance analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramics and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.





Type

C220

C320

Frequency Range

1KHZ-500Khz

1Khz-1Mhz

Measurement Index

All parameter, graphics



Measurement Accuracy

< 1%

< 0.5%

Measurement Speed

10 second/piece(equivalent

to 600 scan dots)

5 second/piece(equivalent

 to 600 scan dots)

Frequency Accuracy

±15ppm

±5ppm

Phase Resolution

0.15 degree

0.15 degree

Enviroment temperature

10-40 cº

10-40 cº

Impedance Range

1Ω~1MΩ

1Ω~1MΩ

Frequency Step

0.1Hz~any

0.1Hz~any

Application

Ultrasonic equipment testing,

ultrasonic cleaning, ultrasonic welding,

ultrasonic medical

inspection production line of piezoelectric ceramic below 1mhz







Frequency Range: 1KHZ-1MHz

Min.Frequency Step: 0.1HZ

Measurement accuracy: < 0.5%

Measurement speed: five seconds per pieces(equivalent to 600 scan dots)

Frequency accuracy: ±5ppm

Phase Accuracy: 0.15 degree

Enviroment temperature: 10-40 cº

Impedance Range: 1Ω~1MΩ

Frequency step: less than 1MHZ

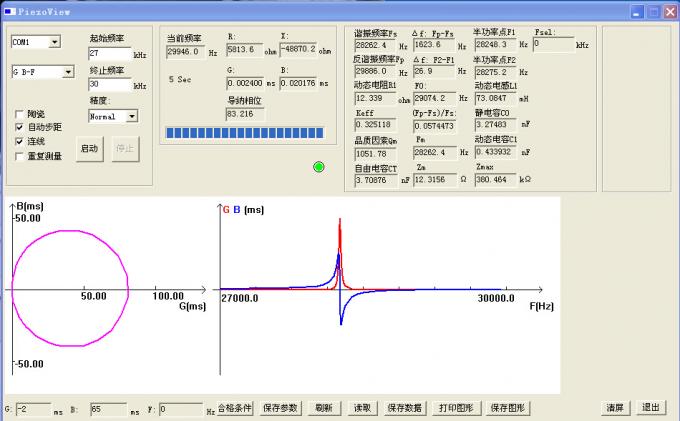

Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax



Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new

product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy

 task. This product has been widely used in distillation, mix and mill for various chemical procedures and

has received much praise from our customers.
