Dual Ultrasonic Frequency Generator 40 / 80khz 2000w / 1500w Drive Power Supply

Dual Ultrasonic Frequency Generator 40 / 80khz 2000w / 1500w Drive Power Supply

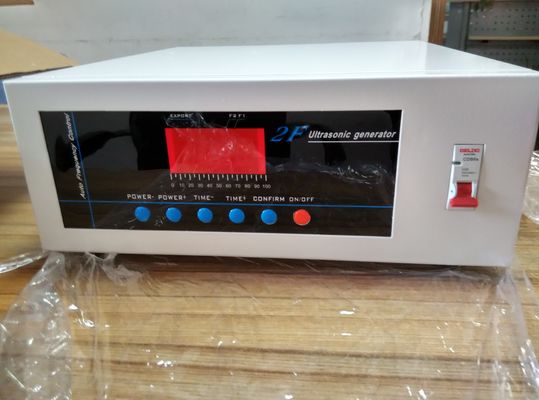

Large Image :  Dual Ultrasonic Frequency Generator 40 / 80khz 2000w / 1500w Drive Power Supply

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description


Dual Ultrasonic Frequency Generator 40 / 80khz 2000w / 1500w Drive Power Supply


Quick Detail:


Ultrasonic generator, also called ultrasonic drive power supply, electronic box, ultrasonic controller, is an important part of high power ultrasonic system.
Ultrasonic generator is used to convert the mains to match the ultrasonic transducer of high frequency ac electric signal, drive the ultrasonic transducer work. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.
Ultrasonic power can be divided into self-excited and it excited power, autonomous power called ultrasonic analog power, which is called ultrasonic generator excitation type power.



Description:

The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.

Warning: a generator should not be operated for long time at the current higher than the rated current.

Below is single frequency Generator.We also can do double frequency, three frequency generator as cutomer's requests.


Type

X4-A-I

X4-A -II

X4-A-III

X4-A-IV

X4-M-V

Driven power

600W-900W

900W-
1500W

1500W-2100W

2100W-2700W

3000W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

0-100%

0-100%

Working
Frequency

25KHZ-
40KHZ

25KHZ-
40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-
40KHZ

Working
voltage

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V 10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

Max.numbers
 of
transducers

12-18pcs 60W

12-30pcs 60W

12-42pcs 60W

12-54pcs 60W

12-60pcs 60W

Rated
Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

0.1-0.14A

0.1-0.14A

Output
Current
range

1-3A

1-4.5A

1-6A

1-7A

1-7.5A

Time
Control
Range

0-59’59”

0-59’59”

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

0-40℃

0-40℃

Relative
Humidity

40%-90%

40%-90%

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

12KG

12KG

Dimension
 (mm)

390×350
×130

390×
350×130

390×
350×130

390×
350×130

390×
350×130


Applications:

widely used in ultrasonic cleaning equipment



Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional
 manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a
new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into
an easy task. This product has been widely used in distillation, mix and mill for various chemical
procedures
and has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
