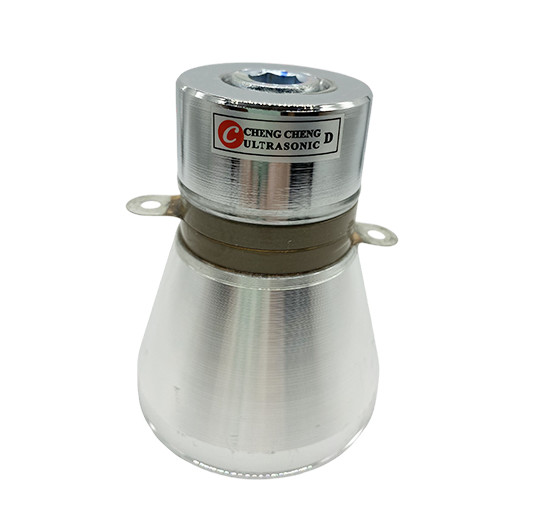

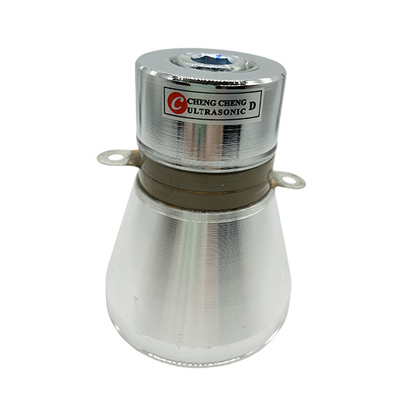

60w 25k Piezoelectric Ultrasonic Cleaning Transducer
Description:
Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).
Ultrasonic transducers are widely used, and they are divided into industry, agriculture, transportation, life, medical care and military according to the application industries. According to the realized functions, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, living body, etc.; according to the nature, it is divided into power ultrasonic, detection ultrasonic, ultrasonic imaging, etc. .
|
Type |
Length
(mm) |
Weight
(g) |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
|
CCH-6845D-20LA PZT-8 |
95 | 910 | 20 | 20-40 | 5000 | 100 |
|
CCH-6850D-28LB PZT-8 |
67 | 666 | 28 | 10-25 | 7000 | 120 |
|
CCH-6845D-28LA PZT-8 |
66 | 625 | 28 | 10-25 | 5000 | 100 |
|
CCH-6845D-28LB PZT-4 |
66 | 624 | 28 | 10-25 | 6600 | 100 |
|
CCH-5838D-25LB PZT-4 |
76 | 524 | 25 | 10-25 | 5400 | 60 |
|
CCH-5938D-25LA PZT-8 |
65 | 525 | 25 | 10-25 | 3800 | 60 |
Specifications:
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ROSH, ISO9001
Company pictures:
