HomeProductsHigh Power Ultrasonic Transducer

PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer

PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer

PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer supplier PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer supplier PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer supplier PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer supplier

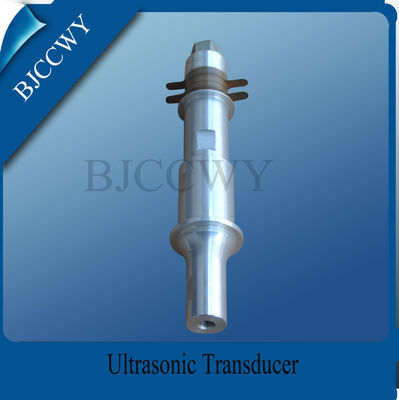

Large Image :  PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $50--$120
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description



PZT8 Low Frequency Ultrasonic Transducers , Immersible Ultrasonic Transducer





Quick Detail





20KHZ 1300W Ultrasonic Transducer:

High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.

Low Frequency PZT8 Ultrasonic Transducers , Immersible Ultrasonic cleaning transducer





Description



20KHZ1300W  Ultrasonic Transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Application of Ultrasonic Immersible Transducer

immersible ultrasonic transducers This series of products  is suitable to cleaning work

pieces of various industries;such as plating components cleaning before

plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon

chips,glass vessels,bijouterie,spectacle frame, etc.

Pre-plating cleaning for parts to be plated, oil and dirt removing for metal

mechanical. Parts, cleaning semi-conductor Si-chips, spectacle frames and glass

vessels.

Lens, sunglasses, short-sighted mirror and prism, the microscope, camera, glass

equipment, etc.

electroplating accessories, watch & clock accessories, metal accessories, terylene

filter core, semiconductor silicon, tools, lens, spectacle frames, jewelry and glass

containers...etc.





Specifications of 20KHZ1300W Ultrasonic Transducer:



Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)



Resonance Impedance(Ω)



Capacity(pF)



Input Power

(W)

CCH-3850F-20D P8



128



1/2-20 UNF



20



10



12500



1300







Competitive Advantage of 20KHZ1300W Ultrasonic Transducer:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
