Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W

Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W

Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W supplier Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W supplier Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W supplier Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W supplier

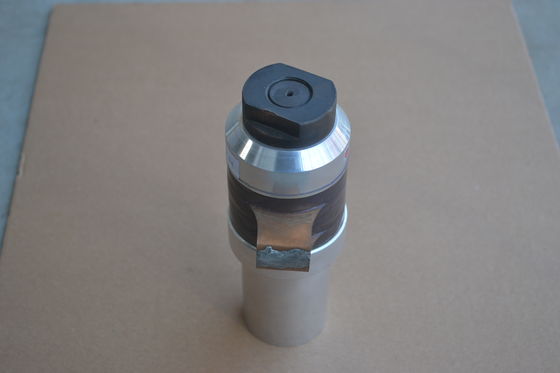

Large Image :  Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $50--$120
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description



Welding Machine High Power Ultrasonic Transducer 20 KHZ 2000W





Quick Detail 20KHZ2000W Ultrasonic Transducer:



High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.





Description of 20KHZ2000W  Ultrasonic Transducer:



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications of 20KHZ2000W  Ultrasonic Transducer:



widely used in ultrasonic welding machine.ultrasonic polishing machine and ultrasonic drilling machine.





Specifications of 20KHZ2000W Ultrasonic Transducer:





Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)



Resonance Impedance(Ω)



Capacity(pF)



Input Power

(W)

CCH-5555F-20Z P8



128



M18×1



20



10



11000



2000







Feature
1. good heat resistance
2. large range of working temperature
3. low resonance impedance and heat productivity
4. good construction
5. fastened by screw or AB glue
6. easy for assembling
7. High performance and amplitude







Competitive Advantage of 20KHZ2000W Ultrasonic Transducer:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
