Home Products Multi Frequency Ultrasonic Transducer

ultrasonic transducer for cleaning equipment

ultrasonic transducer for cleaning equipment

ultrasonic transducer for cleaning equipment  supplier

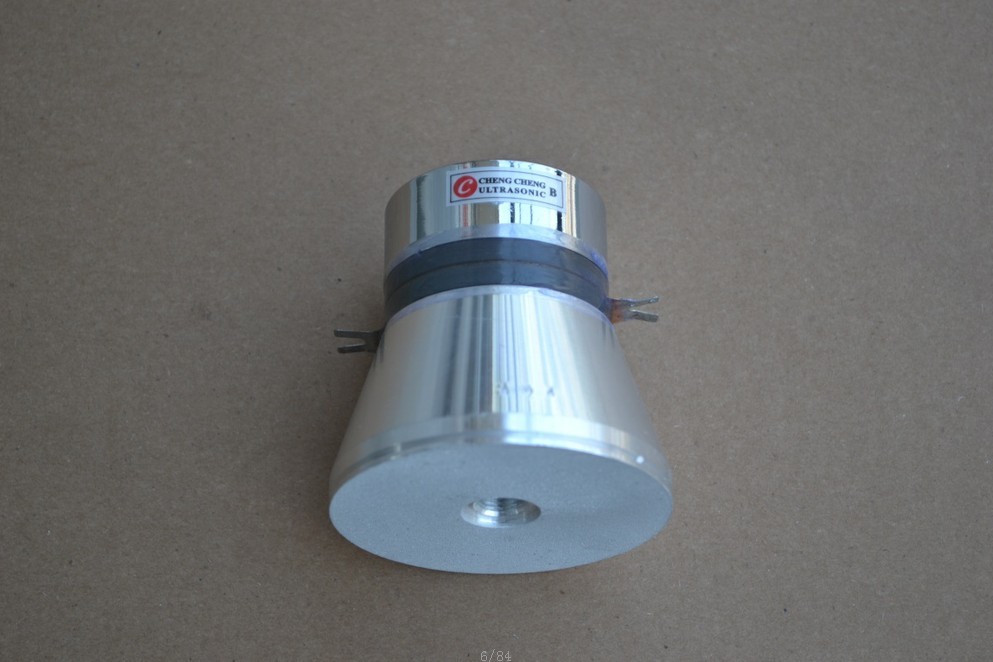

Large Image : ultrasonic transducer for cleaning equipment

Product Details:

Place of Origin:CN
Brand Name:CCWY
Certification:CE ROSH TUV
Model Number:CCWY

Payment & Shipping Terms:

Minimum Order Quantity:1PCS
Price:$6--$15
Packaging Details:CARTON
Delivery Time:On stock
Payment Terms:T/T
Supply Ability:20.000.000 PER MONTH
Detailed Product Description







Quick Detail:



Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description:



Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications:



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.





Specifications:





Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-20LA

PZT-8

95

910

20

20-40

5000

100

CCH-6850D-28LB

PZT-8

67

666

28

10-25

7000

120

CCH-6845D-28LA

PZT-8

66

625

28

10-25

5000

100

CCH-6845D-28LB

PZT-4

66

624

28

10-25

6600

100

CCH-5838D-25LB

PZT-4

76

524

25

10-25

5400

60

CCH-5938D-25LA

PZT-8

65

525

25

10-25

3800

60

CCH-5938D-28LB

PZF-4

66

510

28

10-25

3800

60

CCH-4535D-28ZB

PZT-4

82

425

28

10-25

4100

50

CCH-6845D-30L

PZT-8

61

550

30

10-25

5000

100

CCH-4838D-33LA

PZT-8

58

420

33

10-25

3800

60

CCH-5038D-40LA

PZT-8

54

300

40

10-25

3800

60

CCH-4535D-40LB

PZT-4

57

300

40

10-25

4100

50

CCH-4838D-40ZB

PZT-8

56

310

40

10-25

3800

60

CCH-4838S-50LA

PZT-4

40

160

50

30-60

2100

30

CCH-3830D-54LA

PZT-4

36

135

54

10-25

3200

35

CCH-4938D-68ZB

PZT-8

79

535

68

15-30

3800

60

CCH-5250D-68ZB

PZT-4

67

588

68

15-30

7000

120

CCH-4038D-80ZB

PZT-4

53

290

80

15-30

5400

60

CCH-4838D-120ZB

PZT-4

57

255

120

15-30

5400

60

CCH-4535D-135ZB

PZT-4

28

215

135

15-30

4200

50

CCH-5038D-25(40)LB

PZT-8

65

442

25/ 40

15-30

3800

60





Competitive Advantage:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
