1k - 500khz Rohs Ultrasonic Impedance Analyzer
1k - 500khz Rohs Ultrasonic Impedance Analyzer
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: CC520
High Light:

rohs ultrasonic impedance analyzer


1k ultrasonic impedance analyzer


500k ultrasonic impedance analyzer

Payment & Shipping Terms
Packaging Details: Carton or wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000
Products: Impedance Analyzer
Testing Products: Transducer And Ceramics
Measuring Frequency: 1K-500KHZ
Type: CC520
Accuracy: Less Than 0.1%
MOQ: 1pc
Product Description

Ultrasonic Impedance Analyzer


Ultrasonic impedance Analyzer is developed by Tsinghua University of department of Automation and Institute of acoustics, Chinese Academy of Sciences. And mainly used in testing of piezoelectric ultrasonic device.


1. Dimension size: 24cmx14cmx (front 5cm, back 10cm), weight:1.95kgs. It is most portable ultrasonic impedance analyzer.

     2. Touch screen, no pressing button,display all parameters and graphics, more intuitive.

     3. Fast testing speed, it takes 10 seconds to test 2000 points one times.

     4. The maximum testing frequency can be 5MHZ.

     5. SIEMENS automatic patch manufacturing process, three years quality guarantee period.



Specification Portable,7.8 inch touch screen
Size Length:24cm,width:19cm,front height:5cm,back height:10cm
Frequency range 1KHz~5MHz
Indicator All parameter and graphics
Measurement Accuracy < 0.1%
Measurement Speed 5 second/piece( 1000 scan dots)
Frequency Accuracy ±10ppm
Phase Resolution 0.15degree
Enviroment temperature 10~40cº
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic cleaner,ultrasonic welding

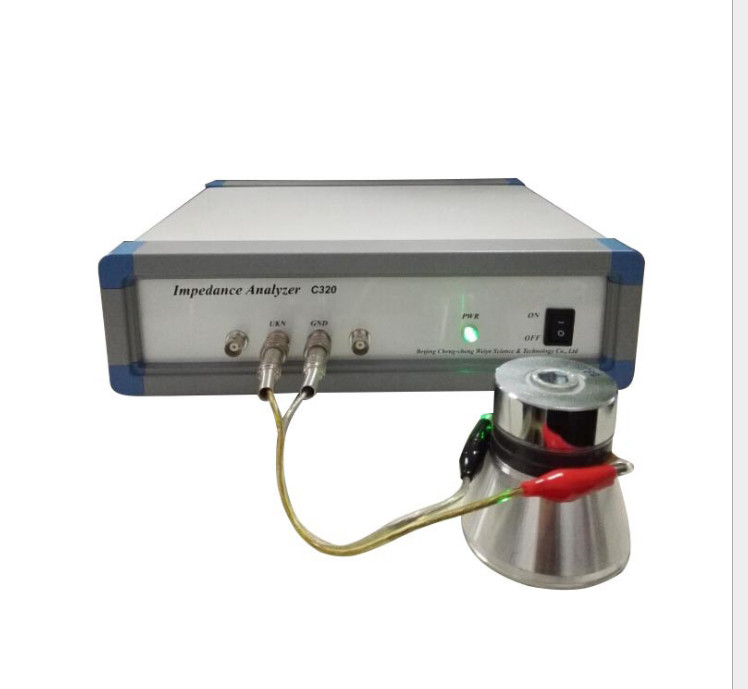

1k - 500khz Rohs Ultrasonic Impedance Analyzer 0


1k - 500khz Rohs Ultrasonic Impedance Analyzer 1
