1mhz Ultrasonic Intensity Meter Testing Frequency
1mhz Ultrasonic Intensity Meter Testing Frequency
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: DBS-200S
High Light:

testing frequency ultrasonic intensity meter


ultrasonic frequency meter 1MHZ


1MHZ ultrasonic intensity meter

Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000
Type: DBS-200S
Testing Frequency: 1MHZ
Liquid Temperature: 0-200C
Power Supply: Rechargeable 3.7V
Probe Diameter: 25mm
Testing: Frequency And Energy
Product Description


Ultrasonic Intensity Meter Testing Frequency


Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure). The measuring instrument is measuring the instantaneous value of ultrasonic cleaning machine wash force and average designed for the development of portable sound pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid surrounding the pressure as ultrasonic cleaning machine wash are determined by a net force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank, ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination, the wash effect of management, industrial parts, and the analysis and research of the ultrasonic irradiation intensity and wash effect, etc.

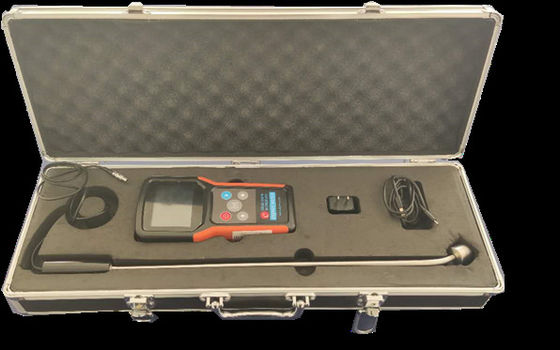

 1mhz Ultrasonic Intensity Meter Testing Frequency 0


Product Advantage:


  1. This admeasuring apparatus simplicity of operator.measuring accurate


  1. hand hold with lithium battery, can meet the power converter for chargingal


  1. Color screen display, sound intensity and time curve real-time computation and store the maximum and average sound intensity, and be able to replay the curve of the specified period of time and data at any time.


  1. It can be consecutive storage memory for 48 hours Data ,data upload.



e:The product can supply stand-alone software(purchase)you can upload to you computer to run the equipment data trend analysis.


f.Customer special requirement(custom –made)This equipment can custom made supply communication interface and client PLC connect ,convenient for remote data, real-time monitoring, principle as shown in figure: real time monitoring principle as photos

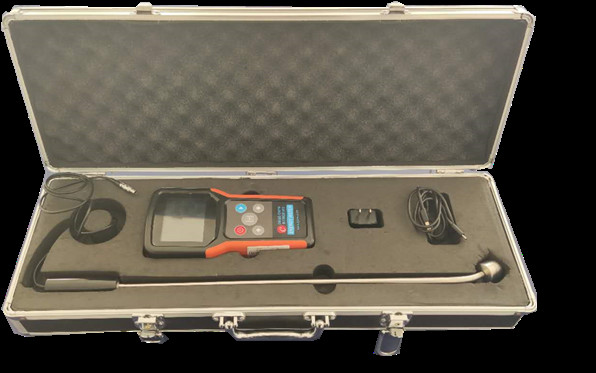

1mhz Ultrasonic Intensity Meter Testing Frequency 1


1mhz Ultrasonic Intensity Meter Testing Frequency 2
