Waterproof 60w 25k Piezoelectric Ultrasonic Transducer
1PCS
MOQ
Waterproof 60w 25k Piezoelectric Ultrasonic Transducer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
High Light:

60w 25k piezoelectric ultrasonic transducer

,

waterproof piezoelectric ultrasonic transducer

,

waterproof transducer 60w 25k

Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Specifications
Brand: CCWY
Certification: CE ROSH TUV
Feature: Long Life Low Cost
Application: Industrial Cleaning Machine
Frequency: 25K
Power: 60W
Product Description



Piezoelectric Ultrasonic Transducer 60W 25K





Description:



Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).





The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.





Type

Length



(mm)

Weight



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-20LA

PZT-8

95 910 20 20-40 5000 100

CCH-6850D-28LB

PZT-8

67 666 28 10-25 7000 120

CCH-6845D-28LA

PZT-8

66 625 28 10-25 5000 100

CCH-6845D-28LB

PZT-4

66 624 28 10-25 6600 100

CCH-5838D-25LB

PZT-4

76 524 25 10-25 5400 60

CCH-5938D-25LA

PZT-8

65 525 25 10-25 3800 60



Specifications:

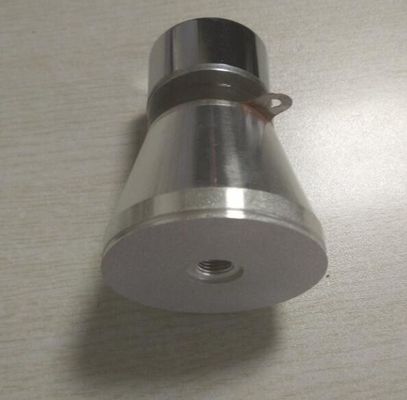

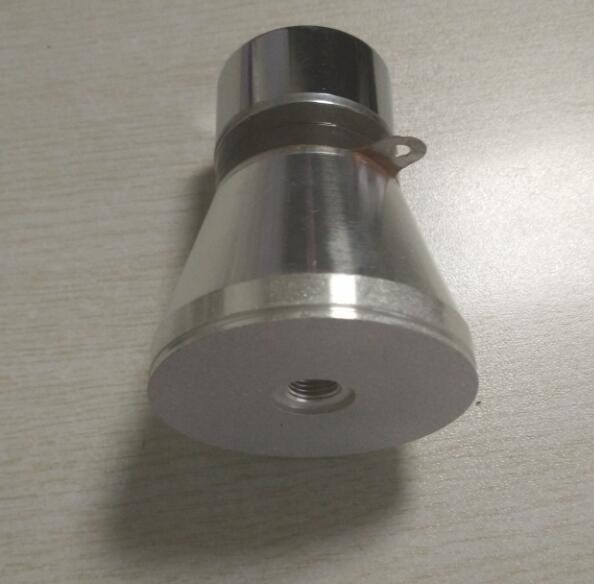

Waterproof 60w 25k Piezoelectric Ultrasonic Transducer 0

Waterproof 60w 25k Piezoelectric Ultrasonic Transducer 1



Waterproof 60w 25k Piezoelectric Ultrasonic Transducer 2



Company introduction:



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.



We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.



Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ROSH, ISO9001



Company pictures:



Waterproof 60w 25k Piezoelectric Ultrasonic Transducer 3
