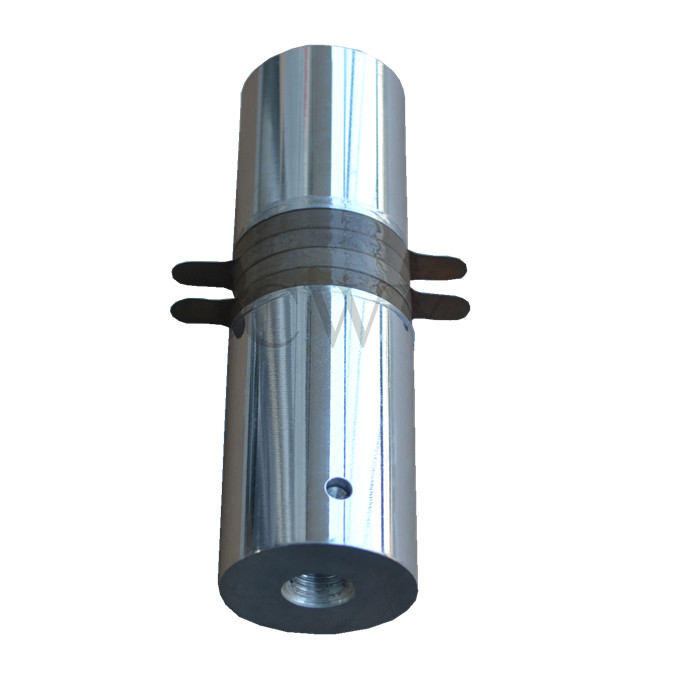

500w 30k Welding Piezo Ceramic Transducer For Plastic Welding Machine

500w 30k Welding Piezo Ceramic Transducer For Plastic Welding Machine

Large Image :  500w 30k Welding Piezo Ceramic Transducer For Plastic Welding Machine

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Name: Piezoelectric Ultrasonic Transducer Power: 50W
Certification: CE, ROSH, ISO9001 Frequency: 40K
Material: Stainless Steel Application: Ultrasonic Cleaner


 500W 30K Welding Piezoelectric Ultrasonic Transducer Plastic Welding Machine



Description:

Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).


The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.



Specifications:

Type length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) input Power(W)
CCH-7070F-15Z P8 153 M20×1.5 15 15 13000 2500
CCH-6060F-15Z P8 167 M20×1.5 15 10 9500 2000
CCH-5050F-15Z P4 171 M18×1.5 15 12 12500 1500
CCH-6060F-20Z P4 118 M20×1.5 20 15 15000 1800
CCH-5555F-20Z P8 128 M18×1 20 10 11000 2000
CCH-5050F-20Z P8 124 M18×1.5 20 12 10000 1500
CC-4040F-20ZL P8 112 1/2-20 UNF 20 15 9000 700
CCH-4040F-20ZL-P P8 133 1/2-20 UNF 20 15 10000 900
CCH-5050D-20D-P P8 121 M18×1.5 20 15 6000 600
CCH-3030F-30Z P8 77 M10×1.5 30 5 5500 500
CCH-3030D-28Z P4 92.1 M10×1 28 20 3000 200
CCH-2525D-28Z P8 91 M8×1 28 25 2200 100
CCH-3838D-28ZL P8 94 1/2-20 UNF 28 20 4000 250
CCH-3850L-20D P8 128 1/2-20 UNF 20 10 20000 2000
CCH-3840L-20D P8 124 1/2-20 UNF 20 10 16000 1500
CCH-3850F-20D P8 128 1/2-20 UNF 20 10 12500 1300
CCH-3850F-20DL P8 132 1/2-20 UNF 20 10 11000 1500
CCH-3840F-20D P8 123 1/2-20 UNF 20 10 9500 900
CCH-5060F-15D P4 171 M18×1.5 15 12 10000 2000
CCH-2525D-35ZL P8 71 M8×1 35 25 2200 100
CCH2020D-38ZL P8 66 M8×1.25 38 40 1200 100
CCH-2830D-38DL P4 65 M8×1 38 14 3300 200


Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

We have close cooperation with the institute of acoustics, Chinese Aceademy of Science, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment, our R& D capacity in the field of ultrasonic products is superior to that of our competitors.

Payment:

We accept paypal or T/T, western union etc.


Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification:

CE, ROSH, ISO9001
