Silver Color Piezoelectric Ceramic Tube Positive And Negative Electrodes

Silver Color Piezoelectric Ceramic Tube Positive And Negative Electrodes

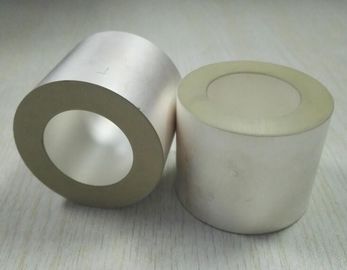

Large Image :  Silver Color Piezoelectric Ceramic Tube Positive And Negative Electrodes

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Shape: Round Product Name: Round Shape Piezo Ceramic Plate Two Electrodes In The Same Side Customized Size
Size: Customzied Color: Silver Ultrasonic Piezoelectric
Material: P4, P8 Or P5 Etc Packing: Protection Carton

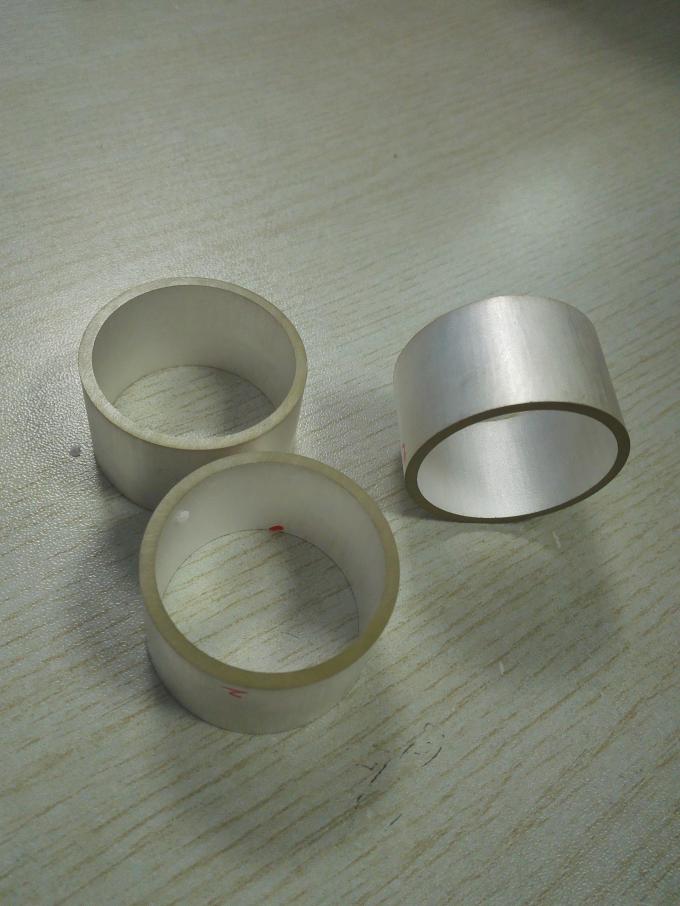

Tube or Ring Shape Piezo Ceramic Positive and Negative Electrodes



Quick Detail



32/12/5Ring Piezoelectric Ceramic:

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.

Piezoelectric Element Piezo Ceramic Plate 2200pF For Automatic Ultrasonic Cleaner



Description



32/12/5 Ring Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on





Specifications



 Ring Piezoelectric Ceramic:

Dimension(mm) Capacity C (pF)

Weak

Field

Dissipatio

Tgδ (12v)

Strong

Field

Dissip

ationTg δ

(400v)

Radial

Frequency
Fr(KHz)

Reso

nance

Impedance
Zm (Ω )

Thick FrequencyFt (KHz) Coupling Modulus Kr (%) Quality Factor Qm
Φ10xΦ5x2 240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800
Φ16xΦ8x4 340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800
Φ25xΦ10x4 935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800
Φ30xΦ10x5 1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800
Φ32xΦ15x5 1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800
Φ35xΦ15x5 1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800
Φ38xΦ15x5 1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800
Φ40xΦ15x5 1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800
Φ42xΦ15x5 2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800
Φ42xΦ17x5 2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800
Φ45xΦ15x5 2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800
Φ50xΦ17x5 3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800
Φ50xΦ17x6 2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800

Competitive Advantage of Ring Piezoelectric Ceramic:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:



Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.



Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:

CE, ISO9001, ROSH
