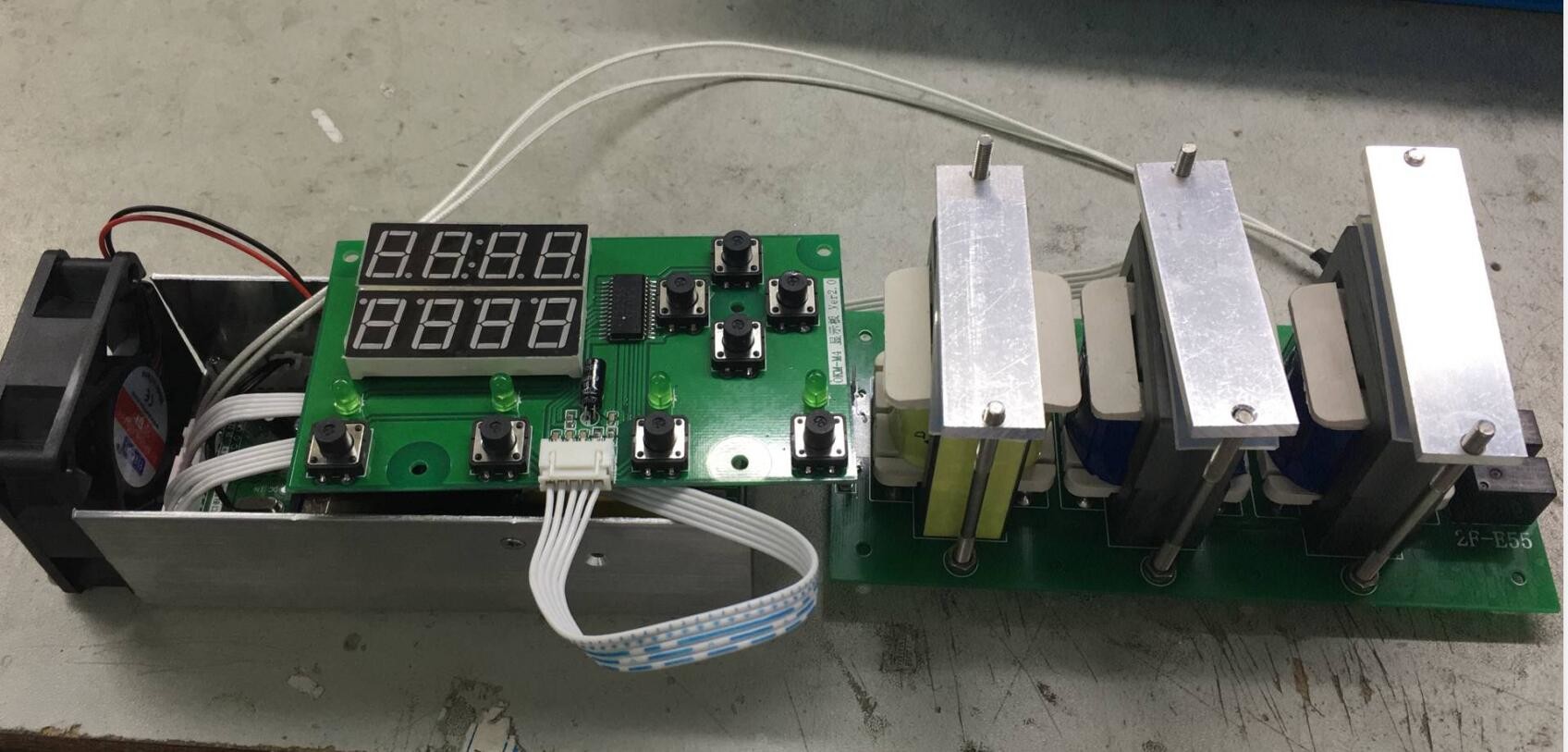

Double Frequency PCB Ultrasonic Circuit Board 200W Input Power High Precision

1PCS
MOQ
Double Frequency PCB Ultrasonic Circuit Board 200W Input Power High Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Ultrasonic PCB Board
Frequency: 28kzh
Input Power: 200W
Certification: CE, ISO9001, ROSH
Cusmized: Frequency And Power
Packing: Protection Carton
High Light:

ultrasonic wave generator

,

ultrasonic power generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY-28kzh 200W
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 500 PER MONTH
Product Description

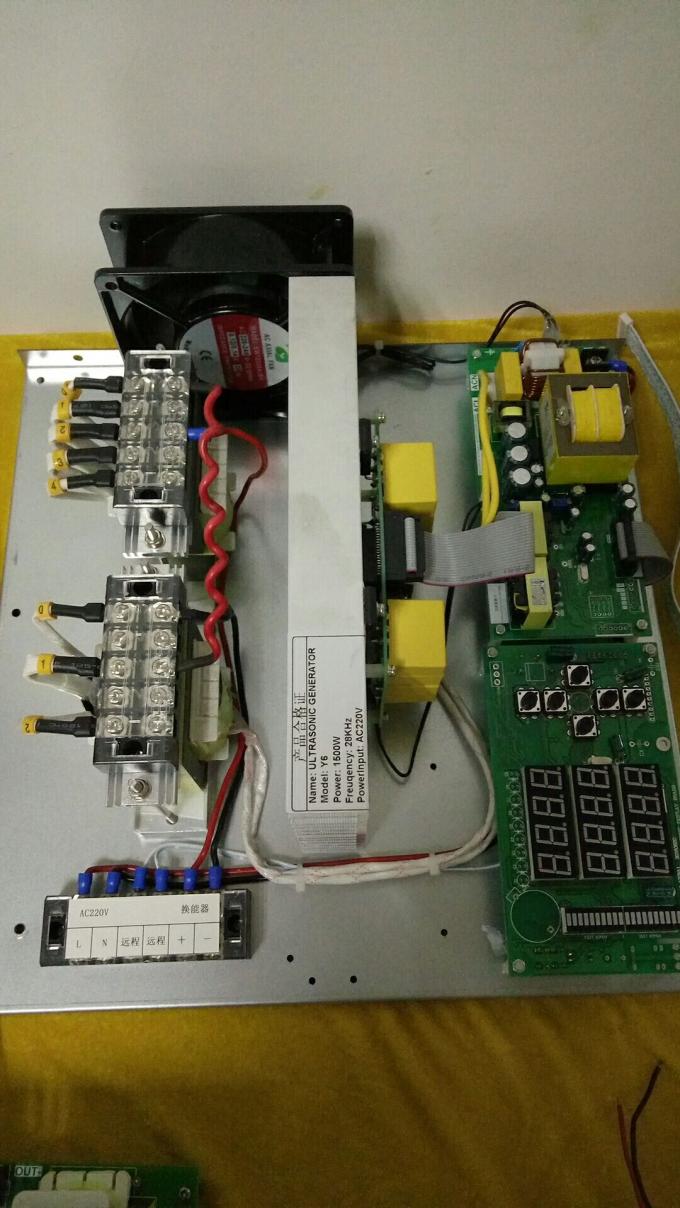

Double Frequency PCB for Cleaner Generator or Ultrasound Testing





Description


The ultrasonic signal generator to generate a specific frequency, The ultrasonic generator A signal can be sine wave, can also be a pulse signal, the specific frequency is the frequency transducer.

20KHz,25KHz,28KHz,33KHz,40KHz,60KHz,80KHz,100KHzUltrasonic frequency ultrasonic equipment commonly used for 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz, 80KHz, 100KHz or above have not been widely used.


The circuit board power can be 100W, 200W, 300W, 500W, 600W etc, or multi-frequency circuit board for making.



Driven power 600W-900W 900W-1500W 1500W-2100W 2100W-2700W 3000W

Power Control

(Adjustable)

0-100% 0-100% 0-100% 0-100% 0-100%
Working Frequency 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ 25KHZ-40KHZ
Working voltage AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ AC220V 10% 50HZ

Max.numbers of

transducers

12-18pcs 60W 12-30pcs 60W 12-42pcs 60W 12-54pcs 60W 12-60pcs 60W

Rated Current

per transducer

0.1-0.17A 0.1-0.17A 0.1-0.17A 0.1-0.14A 0.1-0.14A

Output Current

range

1-3A 1-4.5A 1-6A 1-7A 1-7.5A

Time Control

Range

0-59’59” 0-59’59” 0-59’59” 0-59’59” 0-59’59”

Environment

temperature

0-40℃ 0-40℃ 0-40℃ 0-40℃ 0-40℃
Relative Humidity 40%-90% 40%-90% 40%-90% 40%-90% 40%-90%
Net weight 10KG 11KG 12KG 12KG 12KG
Dimension (mm) 390×350×130 390×350×130 390×350×130 390×350×130 390×350×130


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
