Precision Piezoelectric Ring / Piezoelectric Plate Customized Size / Shape

Precision Piezoelectric Ring / Piezoelectric Plate Customized Size / Shape

Large Image :  Precision Piezoelectric Ring / Piezoelectric Plate Customized Size / Shape

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Certification:: CE, ISO9001, ROSH Shipping:: As Your Requested By Sea Or Other Express
Material: P4, P8 Or P5 Etc Size: Customized
MOQ: 50pcs Packing: Protection Carton

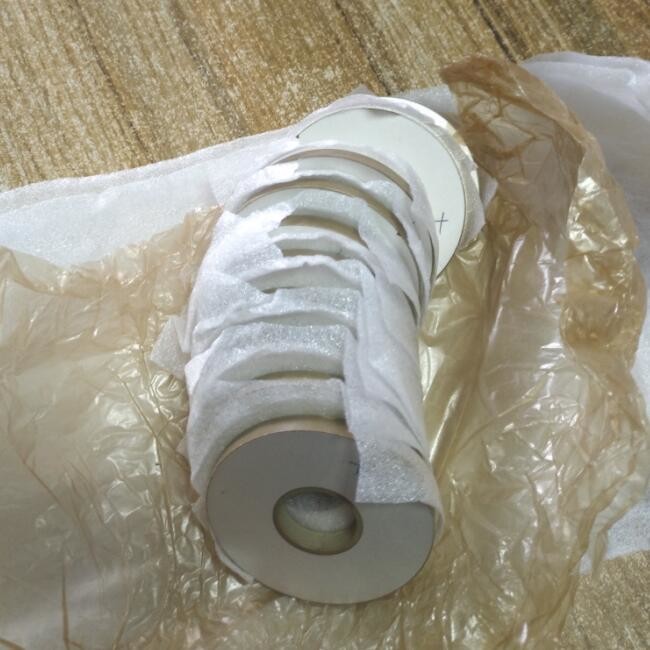

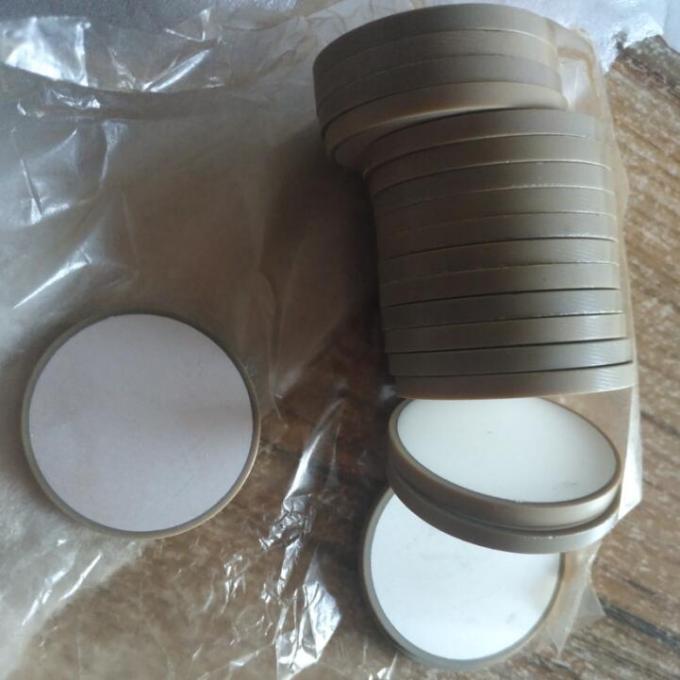

Piezoelectric Ring /Ceramic Plate Customized Size and Shapes





When the voltage acts on the piezoelectric ceramic, it will produce mechanical deformation with changes in voltage and frequency. On the other hand, when the piezoelectric ceramic is vibrated, an electric charge is generated. Using this principle, when an electric signal is applied to a vibrator consisting of two piezoelectric ceramics or one piece of piezoelectric ceramic and one metal piece, so-called bimorph element, ultrasonic waves are emitted due to bending vibration. In contrast, when an ultrasonic vibration is applied to a bimorph element, an electrical signal is generated. Based on the above effects, piezoelectric ceramics can be used as ultrasonic sensors.
Piezoelectric Ceramics Body
Piezoelectric ceramic chip is a simple and lightweight electrical device, which has been widely used due to its high sensitivity, no magnetic field dispersion, no copper wires and magnets, low cost, low power consumption, and ease of mass production. Suitable for the transmission and reception of ultrasonic and infrasound waves, piezoelectric ceramics with large area can also be used to detect pressure and vibration. The working principle is to use the reversibility of the piezoelectric effect and apply an audio voltage to it to emit sound.





Specifications





Dimension(mm)

Capacity

(pF)

Weak

 Field

Dissipatio

Tgδ (12v)

Strong

Field

Dissip

ationTg δ

 (400v)

Radial

Frequency
Fr(KHz)



Reso

nance

Impedance
Zm (Ω )

Thick

Fre

quency
Ft (KHz)

Cou

pling

Modulus
Kr (%)

Qu

ality

Factor
Qm

Φ10xΦ5

x2

240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800

Φ16xΦ8

x4

340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800

Φ25xΦ10

x4

935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800

Φ30xΦ10

x5

1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800

Φ32xΦ15

x5

1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800

Φ35xΦ15

x5

1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800

Φ38xΦ15

x5

1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800

Φ40xΦ15

x5

1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800

Φ42xΦ15

x5

2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800

Φ42xΦ17

x5

2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800

Φ45xΦ15

x5

2580±10% ≤0.5% ≤1.0% 38.1±5% ≤15 410 ≥46 ≥800

Φ50xΦ17

x5

3160±10% ≤0.5% ≤1.0% 34.8±5% ≤15 410 ≥45 ≥800

Φ50xΦ17

x6

2430±10% ≤0.5% ≤1.0% 34.8±5% ≤15 315 ≥45 ≥800
Φ50x3 5800±10% ≤0.5% ≤1.0% 46±5% ≤10 681 ≥50 ≥800
