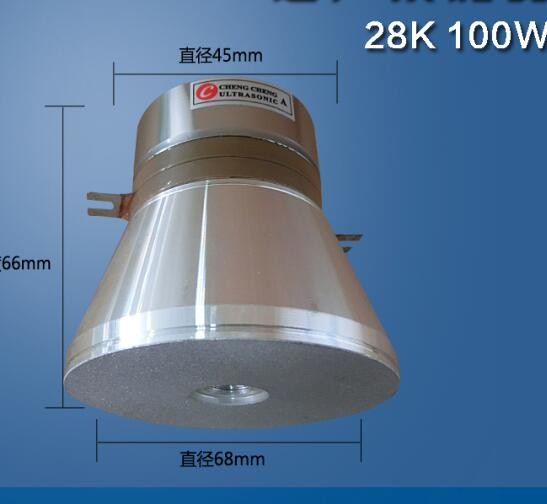

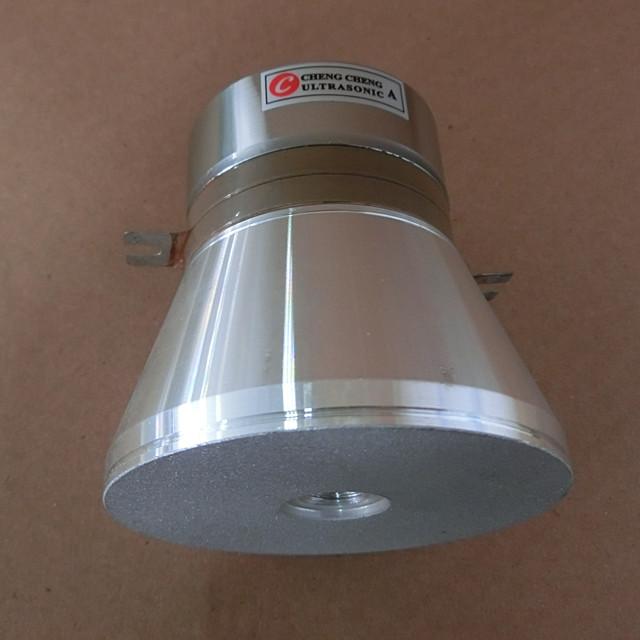

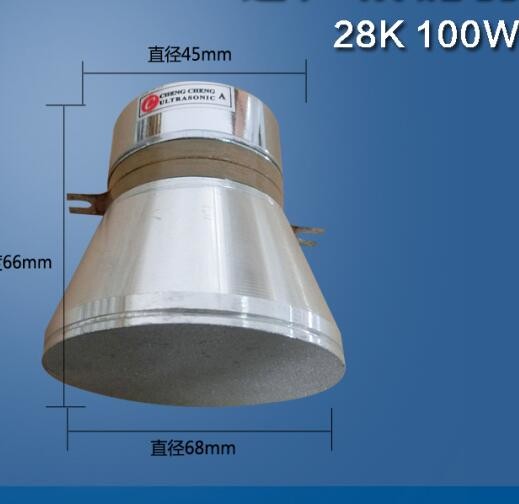

100W 28K High Power Ceramic Piezoelectric Cleaning Transducer
Quick Detail
Ultrasonic transducer :
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Description
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Specifications
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
CCH-7145D-20LA PZT-8
|
94
|
900
|
20
|
≤20
|
5200
|
100
|
CCH-6645D-25LB PZT-4 |
77
|
717
|
25
|
≤20
|
6800
|
100
|
CCH-6650D-28LB PZT-4 |
69
|
746
|
28
|
≤20
|
7900 |
120
|
CCH-6645D-28LB PZT-8 |
66
|
625
|
28
|
≤20
|
5200
|
100
|
CCH-6645D-28LB PZT-4 |
66
|
614
|
28
|
≤20
|
6800
|
100
|
CCH-6645D-30L PZT-8 |
64
|
551
|
30
|
≤20
|
5200 |
100
|
CCH-5938D-25LB PZT-4 |
77
|
530
|
25
|
≤20
|
4900
|
60
|
CCH-5938D-28LB PZT-8 |
68
|
470
|
28
|
≤20
|
3700
|
60
|
CCH-4535D-28ZB PZT-4 |
73
|
407
|
28
|
≤20
|
3950 |
50
|
CCH-4838D-33LB PZT-8 |
62
|
420
|
33
|
≤20
|
4700
|
60
|
CCH-4938D-40LA PZT-8 |
55
|
307
|
40
|
≤20
|
3700
|
60
|
CCH-4538D-40ZB PZT-4 |
57
|
301
|
40
|
≤20
|
4700
|
60
|
CCH-4535D-40LB PZT-4 |
48
|
254
|
40
|
≤20
|
4300 |
50
|
CCH-4535D-40ZB PZT-4 |
53
|
234
|
40
|
≤20
|
4200 |
50
|
CCH-3830D-54LA PZT-4 |
36
|
132
|
54
|
≤20
|
3500 |
35
|
CCH-4938D-70ZB PZT-8 |
80
|
468
|
70 |
≤20
|
5000
|
60
|
CCH-4038D-82ZB PZT-4 |
62
|
316
|
82
|
≤20
|
4900
|
60
|
CCH-3938D-100ZB PZT-4 | 53 | 289 | 100 |
≤20
|
4600 | 40 |
CCH-3938D-124ZB PZT-4 |
59
|
365
|
124
|
≤20
|
5200
|
60
|
CCH-3735D-133ZBL PZT-4 |
54
|
215
|
133
|
≤20
|
3900
|
50
|
CCH-4535-170ZB PZT-4 | 55 | 238 | 170 |
≤50
|
4200 | 50 |
CCH-3130D-200LB PZT-4 | 42 | 126 | 200 |
≤50
|
3200 | 30 |
Type |
Length(mm) |
Weight (g) |
Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
CCH-5839D-25/50LB PZT-4
|
80 | 540 | 25/50 | <35 | 4900 | 40 |
CCH-4039D-80/38ZB PZT-4 |
61 | 330 | 38/80 | <35 | 4800 | 40 |
CCH-4039D-100/40ZB PZT-4 |
54 | 280 | 40/100 | <35 | 3200 | 40 |
CCH-5839D-25/50/80 PZT-4 | 80 | 540 | 25/50/80 | <40 | 5000 | 35 |
CCH-4039D-100/73/40 PZT-4 |
56 | 260 | 40/73/120 | <40 | 5100 | 35 |
CCH-4039D-120/80/40 PZT-4 |
56 | 260 | 40/80/120 | <40 | 5100 | 35 |
CCH-5839D-25/50/80/120 PZT-4 |
80 | 540 | 25/50/80/120 | <45 | 5200 | 30 |
CCH-4039D-120/170/80/40 PZT-4 |
56 | 260 | 40/80/120/170 | <45 | 5400 | 30 |
