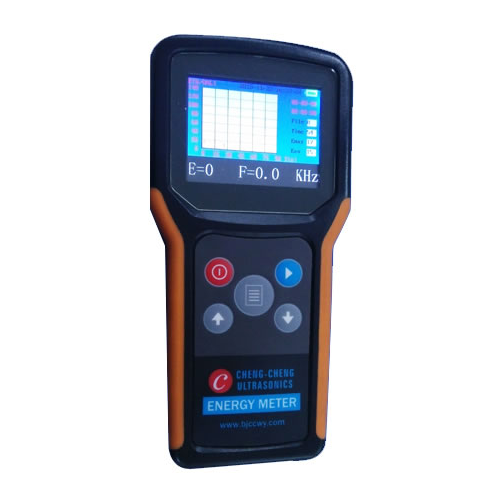

Ultrasonic Meter 0 -255 W/In2 25mm Detector Testing Ultrasound Intensity
Ultrasonic sound pressure meter DBSonics series is occurred in the measurement of
ultrasonic cleaning tank of the intensity of ultrasonic measuring instruments (pressure).
The measuring instrument is measuring the instantaneous value of ultrasonic cleaning
machine wash force and average designed for the development of portable sound
pressure meter, the ultrasonic irradiation in the cleaning fluid at the surface of the fluid
surrounding the pressure as ultrasonic cleaning machine wash are determined by a net

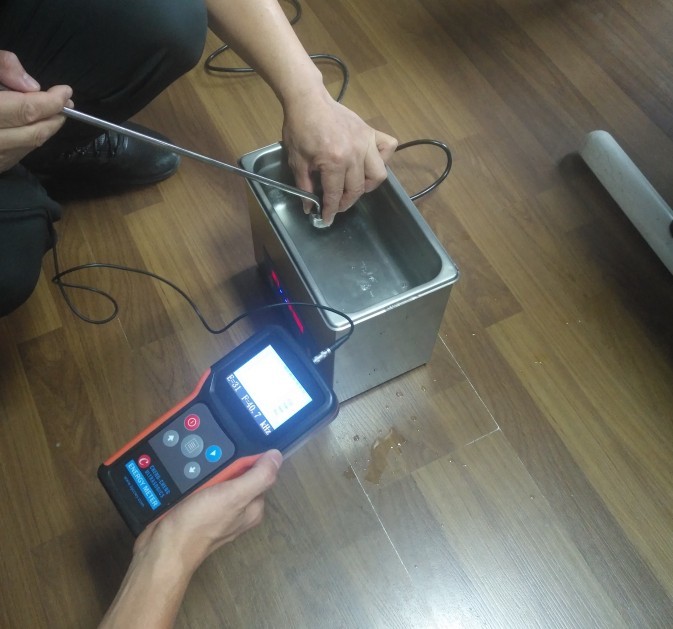

force. Can be used to detect ultrasonic intensity distribution in ultrasonic cleaning tank,
ultrasonic cleaning machine ultrasonic device, such as the adjustment of examination,
the wash effect of management, industrial parts, and the analysis and research of the
ultrasonic irradiation intensity and wash effect, etc.
0 -255 w/in2
10 kHz – 200 kHz
Color display, time and energy curve, maximum value, minimum value,
average value, record file number, ultrasonic frequency
Time, frequency, instantaneous energy, continuous recording 48 hours,
360K point data(0.5”/point)
3.7V Lithium rechargeable battery
Stainless steel sealing pipe
1.0 m；0.5mStainless steel Detector+0.5m cable
Computer analysis software
