HomeProductsHigh Power Ultrasonic Transducer

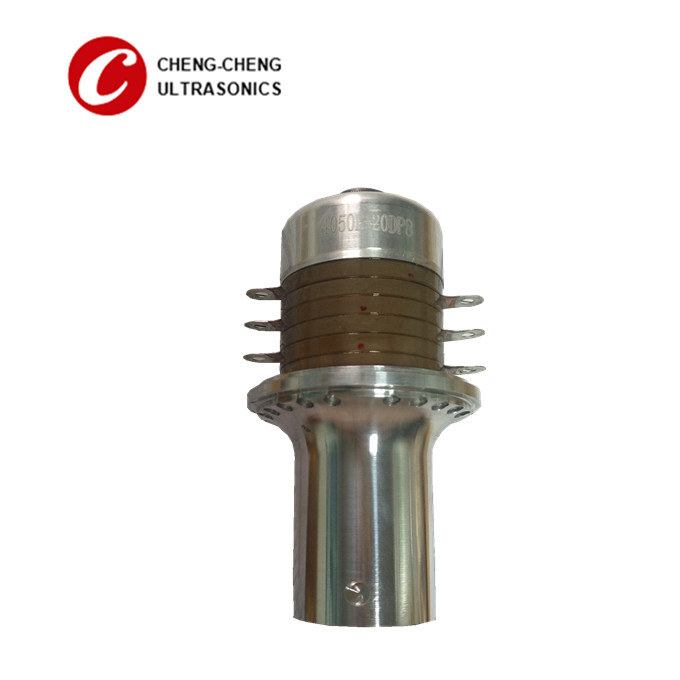

CE Standard High Power Ultrasonic Transducer For Plastic Welding Machines

CE Standard High Power Ultrasonic Transducer For Plastic Welding Machines

Large Image :  CE Standard High Power Ultrasonic Transducer For Plastic Welding Machines

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCH-5060D-15D P4

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: 6USD-12 USD
Packaging Details: protection carton
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Full-length:: 128 Joint Bolt(mm):: 1/2-20UNF
Frequency(Khz): 20 Resonance Impedance:: 10
Capacity(pF):: 20000 Input Power(W):: 2000



2000W 20K Ultrasonic Transducer For Plastic Welding Machines













Type: CCH-4050L-20D P8

Full-length(mm): 128

Joint Bolt(mm): 1/2-20 UNF

Frequency(KHz): 20

Resonance Impedance: 10

Capacity(pf):20000

Input Power(w):2000



Type length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) input Power(W)
CCH-7070F-15Z P8 153 M20×1.5 15 15 13000 2500
CCH-6060F-15Z P8 167 M20×1.5 15 10 9500 2000
CCH-5050F-15Z P4 171 M18×1.5 15 12 12500 1500
CCH-6060F-20Z P4 118 M20×1.5 20 15 15000 1800
CCH-5555F-20Z P8 128 M18×1 20 10 11000 2000
CCH-5050F-20Z P8 124 M18×1.5 20 12 10000 1500
CC-4040F-20ZL P8 112 1/2-20 UNF 20 15 9000 700
CCH-4040F-20ZL-P P8 133 1/2-20 UNF 20 15 10000 900
CCH-5050D-20D-P P8 121 M18×1.5 20 15 6000 600
CCH-3030F-30Z P8 77 M10×1.5 30 5 5500 500
CCH-3030D-28Z P4 92.1 M10×1 28 20 3000 200
CCH-2525D-28Z P8 91 M8×1 28 25 2200 100
CCH-3838D-28ZL P8 94 1/2-20 UNF 28 20 4000 250
CCH-3850L-20D P8 128 1/2-20 UNF 20 10 20000 2000
CCH-3840L-20D P8 124 1/2-20 UNF 20 10 16000 1500
CCH-3850F-20D P8 128 1/2-20 UNF 20 10 12500 1300
CCH-3850F-20DL P8 132 1/2-20 UNF 20 10 11000 1500
CCH-3840F-20D P8 123 1/2-20 UNF 20 10 9500 900
CCH-5060F-15D P4 171 M18×1.5 15 12 10000 2000
CCH-2525D-35ZL P8 71 M8×1 35 25 2200 100
CCH2020D-38ZL P8 66 M8×1.25 38 40 1200 100
CCH-2830D-38DL P4 65 M8×1 38 14 3300 200





Beijing Cheng -Cheng Weiye Science and Technology Co., Ltd established in 1999. we are a professional manufacturer in ultrasonic transducers, ultrasonic generator and piezoelectric ceramics.



The ultrasonic transducers include ultrasonic cleaning transducer, welding, drilling and polishing transducer, Ultrasonic smashing cell transducer, IC Banding Transducer, Ultrasonic collar cleaning transducer, Ultrasonic vibration transducer, ultrasonic transducer for beauty, ultrasonic atomizing transducer, ultrasonic distance sensor, tubular transducer equipment, ultrasonic cleaning generator, ultrasonic cell disruptor etc.
